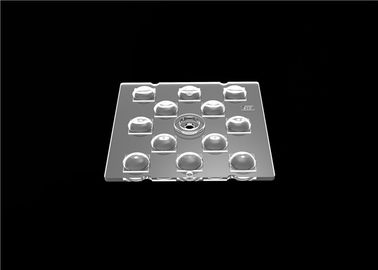

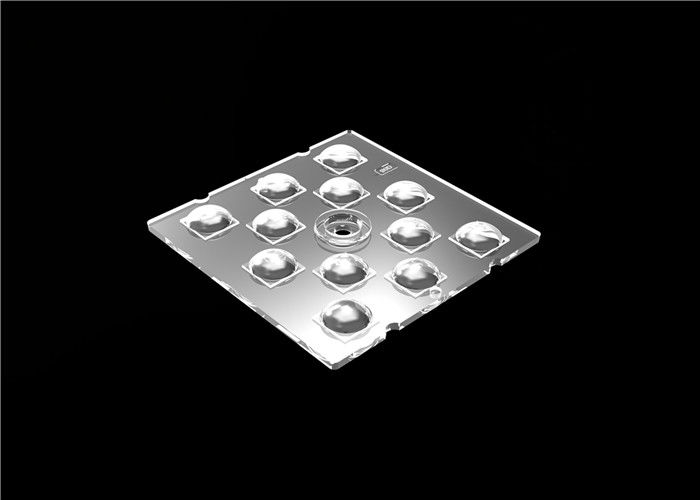

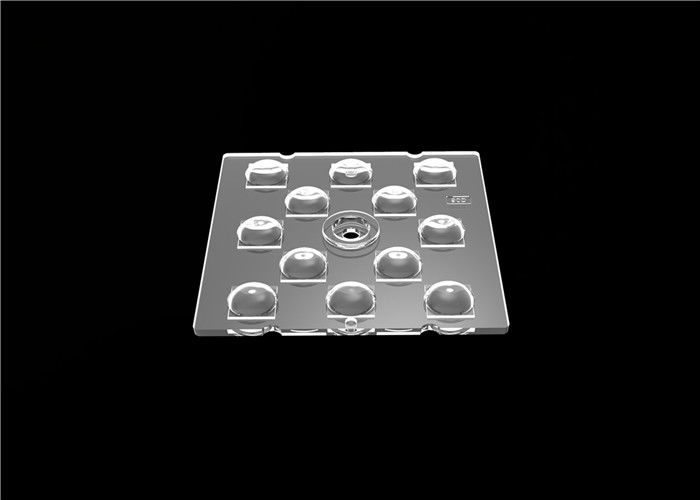

High Efficiency 93% LED Street Light Lens Array With Silicone Gasket Accessory

High Efficiency 93% LED Street Light Lens Array With Silicone Gasket Accessory

    • High Efficiency 93% LED Street Light Lens Array With Silicone Gasket Accessory
    • High Efficiency 93% LED Street Light Lens Array With Silicone Gasket Accessory
    • High Efficiency 93% LED Street Light Lens Array With Silicone Gasket Accessory
  • High Efficiency 93% LED Street Light Lens Array With Silicone Gasket Accessory

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA1290P-5050

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PC Beam Angle: 90 Degree
    Efficiency: 93% Dimension: L50*W50
    LED Chips: SMD 3030 Led Certification: CE, ROHS, SGS
    Accessory: AL PCB+ Silicone Gasket Application: Street Light , High Way Led Lamp, Etc

    3030 SMD 12 in 1 Lens Array LED Street Light Lens With 90 Degree



    LED Optics



    Optics allow you to control your illumination pattern, either diffusing it or focusing it as your application requires. Secondary LED Optics provide a standard LED with collimation for spot, medium, wide and elliptical illumination patterns. We expand on LED optics in our post.



    LEDs generally emit light at a 120-degree viewing angle. LED applications that require more focused light often use a secondary optic that is placed over the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



    Most optics are cone shaped and need an optic holder to hold the lens in place over the LED. The lens itself clips securely into the holder, but the holder does need to be externally adhered.





    Part Number

    JY-BAA1290P-5050

    Beam angle

    90 Degree

    Dimension

    L50*W50

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED Street Light , High Way Led Lamp, etc

    Assembly

    Tape / Glue





    • Storage: Do not store in dusty place, or expose under corrosive environment
    • Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
    • Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.



    LED lens Drawing:



    High Efficiency 93% LED Street Light Lens Array With Silicone Gasket AccessoryHigh Efficiency 93% LED Street Light Lens Array With Silicone Gasket AccessoryHigh Efficiency 93% LED Street Light Lens Array With Silicone Gasket Accessory
