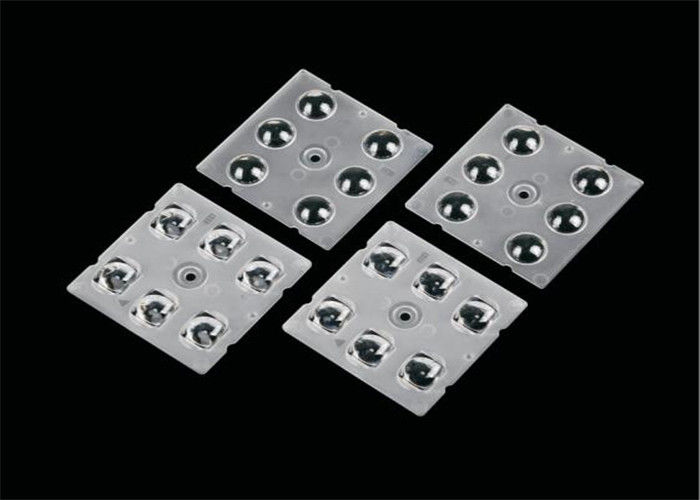

6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light

6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light

    • 6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light
    • 6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light
  • 6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-AAL0690P-5050

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PMMA Beam Angle: 90 Degree
    Efficiency: 93% Dimension: 50*50mm
    LED Chips: 5050 / 3535 Certification: CE, ROHS, SGS
    Application: High Bay Light / Tunnel Light

    6 in 1 LED Optics Lenses 90 Degree For LED High Bay Light / Tunnel Light



    LED optic and holder kits contain both the LED reflector/lens plus a holder. These are called lens assemblies or reflector kits.


    Lens holders provide a mechanical cut-off shield and can also be used to enhance performance.

    They are also much easier to install than a stand-alone lens.


    Alternatively these kits may include an LED holder which holds the LED in place. The lens/reflector

    then simply twists on top.





    Part Number

    JY-AAL0690P-5050

    Beam angle

    90 Degree

    Dimension

    50*50mm

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    High Bay Light / Tunnel Light



    Delivery and Shipping:



    Trade Terms EXW , FOB , CNF , CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    **LED applications that require more focused light often use a secondary optic that is placed over the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



    **Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.



    **LED reflectors sit over the LED to alter the beam of light. They are an affordable and easy-to-use solution for your lighting fitment. However, they do not offer as much control as LED lenses.





    LED lens Drawing:



    6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light



    PCB Board:



    6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light





    IES:





    6 In 1 LED Optics Lenses 90 Degree Easy Use For LED High Bay Light / Tunnel Light
