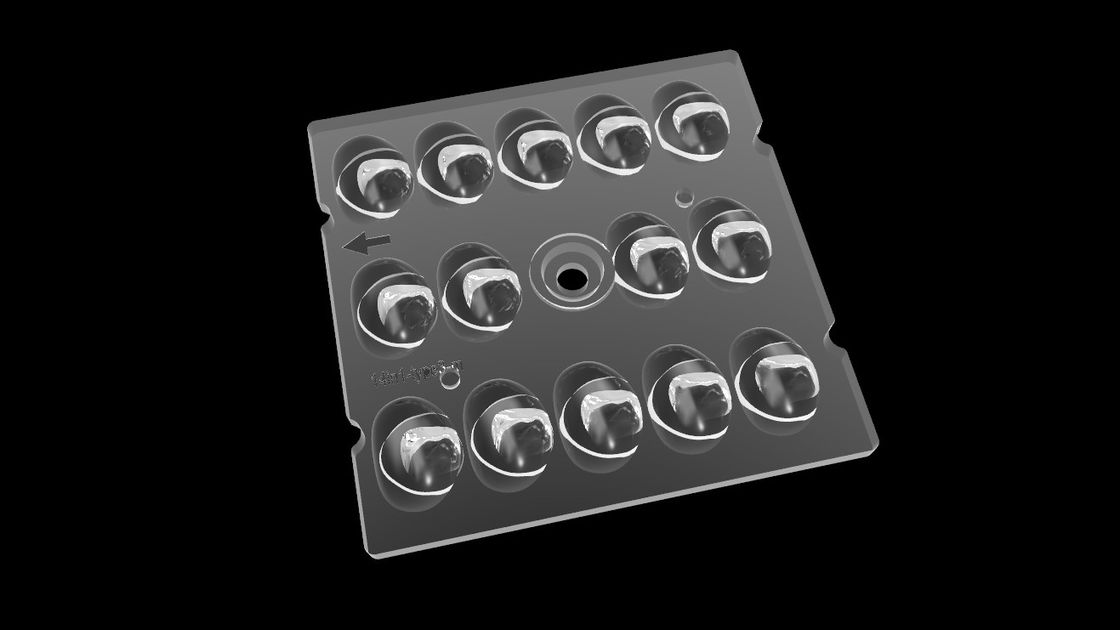

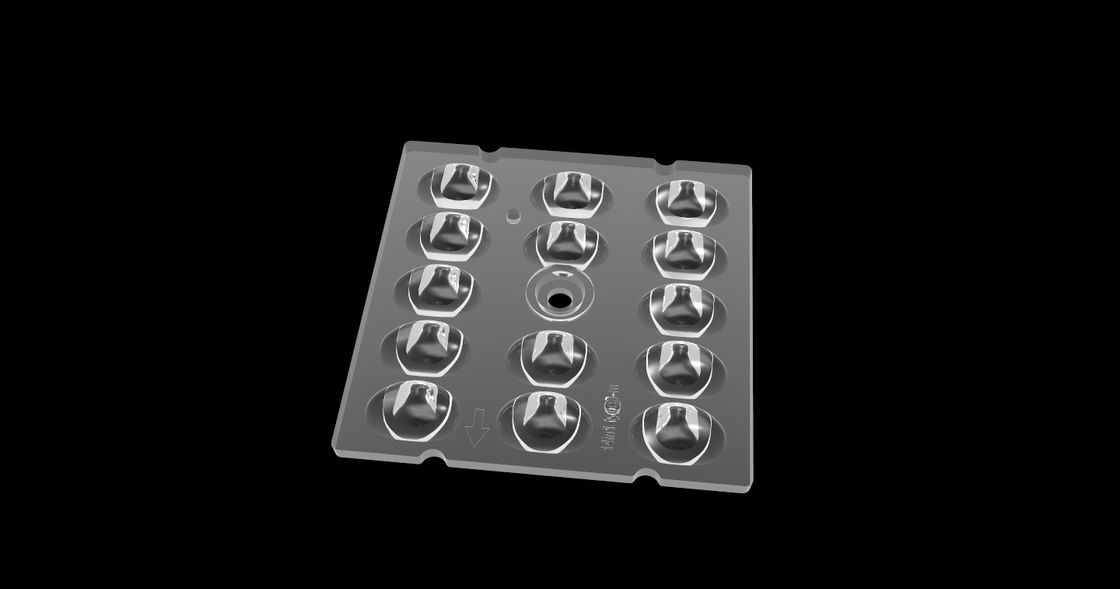

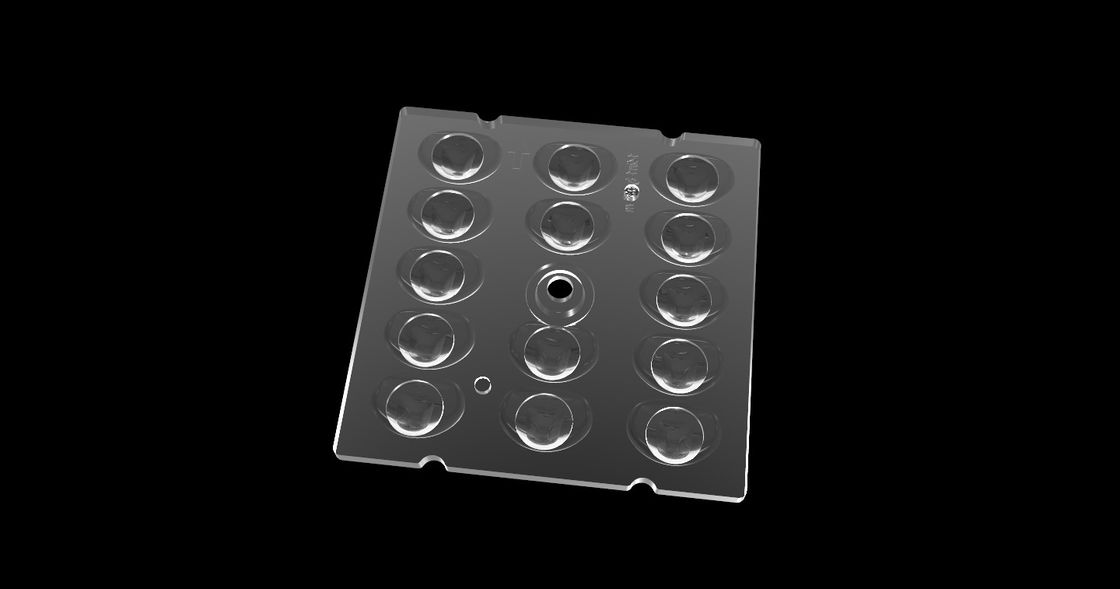

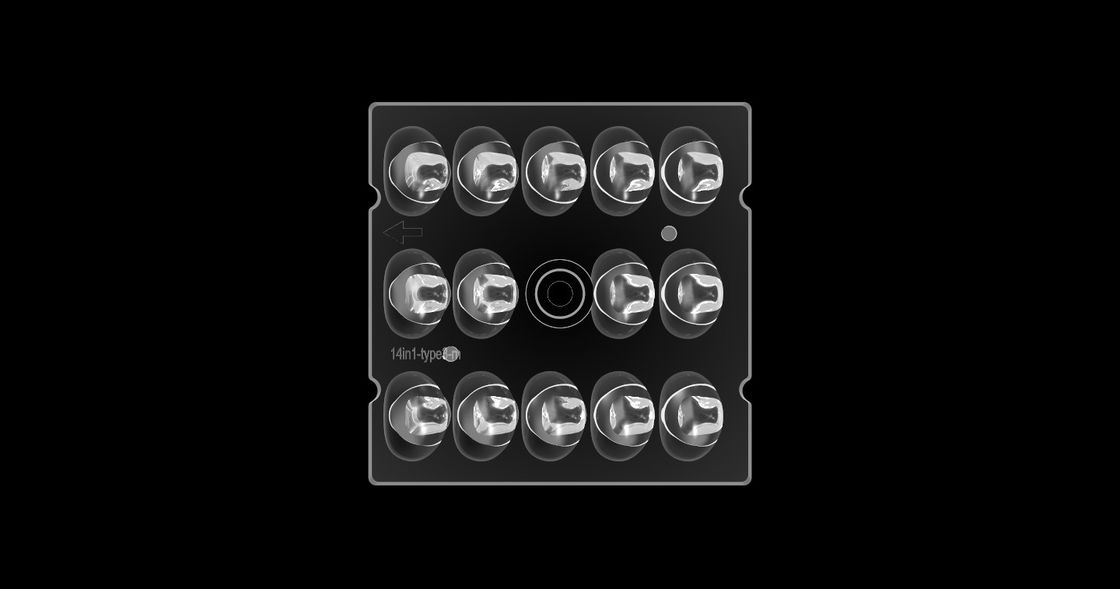

TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting

TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting

    • TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting
    • TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting
  • TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: 1. 2383. 050050

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PC Beam Angle: 60*120 Degree
    Efficiency: 93% Dimension: 50*50mm
    LED Chips: 3030 Application: LED Street Light

    TYPE 4 Led PMMA Lens 3030 LED Street Light Components With 60 X 120 Degree



    Spark offers a wide variety of optical and reflector solutions in various types of lenses;

    single-LED optics, multi-LED optics, reflectors or specialty optics.

    1. A simple Lens consists of a single piece of material, while a compound Lens consists of several simple lenses (elements), usually along a common axis.
    2. We have various Patterns of Street Light Lens in single LED Lens as well as Cluster of LED Lenses which can be used as per convenience of your PCB Design.
    3. Street light lenses are available in different shapes like free form, asymmetric and symmetric shapes. Materials used for manufacturing these lenses are PMMA or PC (poly-carbonate).
    4. The large product range includes specialised optics with ultra narrow, ultra wide, asymmetric and freeform light distribution.



    Part Number

    1. 2383. 050050

    Beam angle

    120*60 Degree

    Dimension

    50*50mm

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED Street Lighting



    Delivery and Shipping:



    Trade Terms EXW , FOB , CNF , CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing by the total amount of light without an optic directly at the LED source.



    In general when talking about lens optics the larger the optic the easier it is to collimate light into a tighter pattern. Another consideration when trying to achieve a tight spot is the size of the LED die. The smaller the size of the die the tighter the spot.





    LED lens Drawing:





    TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting









    TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting







    IES:



    TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting



    TYPE 4 Street Light Square LED Lens , Freeform Light Distribution Optics For LED Lighting
