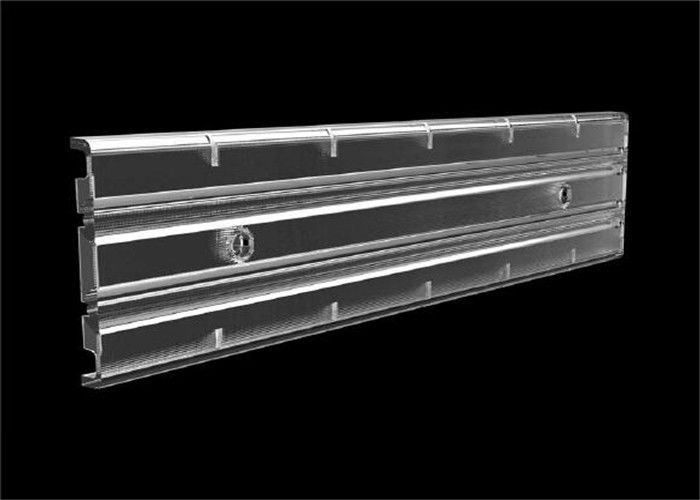

Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree

Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree

    • Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree
    • Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree
  • Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA02SP3090P-28670

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PC Beam Angle: 30*90 Degree
    Efficiency: 93% Dimension: L286*W70mm
    LED Chips: 3030 Accessory: AL PCB+ Silicone Gasket
    Application: Led Linear Light

    Linear Light Lens Double Asymmetric SMD 3030 LED Lens With 30*90 Degree



    LEDs generally emit light at a 120-degree viewing angle. LED applications that require more focused

    light often use a secondary optic that is placed over the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



    1, Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

    The lens itself clips securely into the holder, but the holder does need to be externally adhered. In the

    case of LED stars, optic holders have four legs that sit down into the grooves of the star board.



    2, Spark Led Optical Lenses used in the street light, high way led lamp, tunnel lamp, square lamp,

    road lamp, city lighting, parking spot lamp, track lighting fixtures, scenery area, retail lighting and

    other applications where high luminous flux is desired.







    Part Number

    JY-BAA02SP3090P-28670

    Beam angle

    30*90 Degree

    Dimension

    L286*W70mm

    Lens Material

    PC

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED Linear Light



    Delivery and Shipping:



    Trade Terms EXW , FOB , CNF , CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc



    • Spark are Manufacturer of all types of LED Lens.
    • We have various Patterns of Light Lens in single LED Lens as well as Cluster of LED Lenses which can be used as per convenience of your PCB Design.
    • LED light lenses are available in different shapes like free form, asymmetric and symmetric shapes.
    • Materials used for manufacturing these lenses are PMMA or PC (poly-carbonate).
    • Optics allow you to control your illumination pattern, either diffusing it or focusing it as your application requires.





    LED Lens Drawing:



    Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree









    IES:





    Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree











    Double Asymmetric Linear LED Lens SMD 3030 Silicone Gasket With 30*90 Degree
