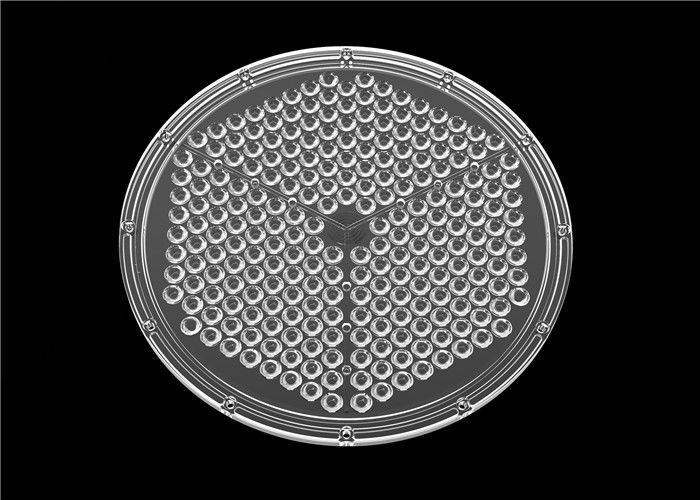

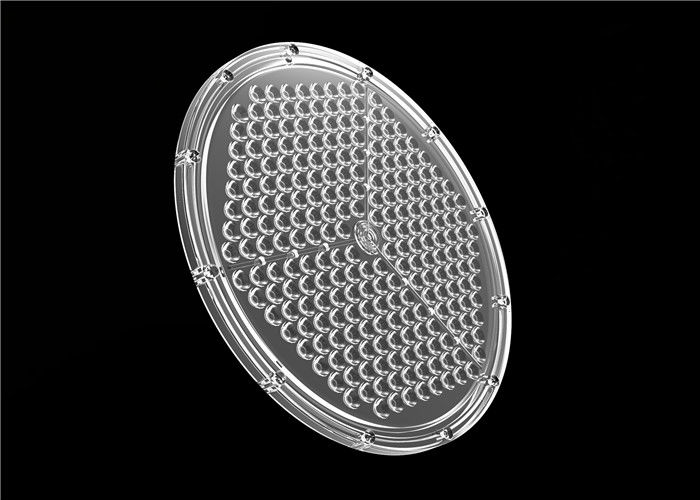

264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light

264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light

    • 264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light
    • 264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light
  • 264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA23490P-26410

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PC Beam Angle: 90 Degree
    Efficiency: 93% Dimension: D264*H9.6
    LED Chips: Samsung 3030 Accessory: AL PCB+ Silicone Gasket
    Application: LED Highbay Light

    264mm Diameter Round Module Lens Multi LED Lens For High Bay Light



    Application: Led Optical Lenses used in the street light, high way led lamp, tunnel lamp,

    square lamp, road lamp, city lighting, parking spot lamp, track lighting fixtures, scenery area,

    retail lighting and other applications where high luminous flux is desired.

    • A Lens is a Transmissive Optical Device that affects the focus of a light beam through refraction.
    • A simple Lens consists of a single piece of material, while a compound Lens consists of several simple lenses (elements), usually along a common axis.
    • Lenses are made from transparent materials such as glass, polymers etc which are ground and polished to a desired shape. A Lens can focus light to form an image.





    Part Number

    JY-BAA23490P-26410

    Beam angle

    90 Degree

    Dimension

    D264*H9.6

    Lens Material

    PC

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED high bay light



    Delivery and Shipping:



    Trade Terms EXW , FOB , CNF , CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    ****LEDs generally emit light at a 120-degree viewing angle. LED applications that require more

    focused light often use a secondary optic that is placed over the LED, which internally reflects light

    into a spot, medium spot, wide spot or elliptical spot pattern.



    ****Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

    The lens itself clips securely into the holder, but the holder does need to be externally adhered. In

    the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.







    LED lens' Drawing:





    264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light







    PCB Board's Size:







    264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light









    Gasket Size:







    264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light









    IES:





    264mm Diameter Multi LED Lens Round Module Lens For LED High Bay Light
