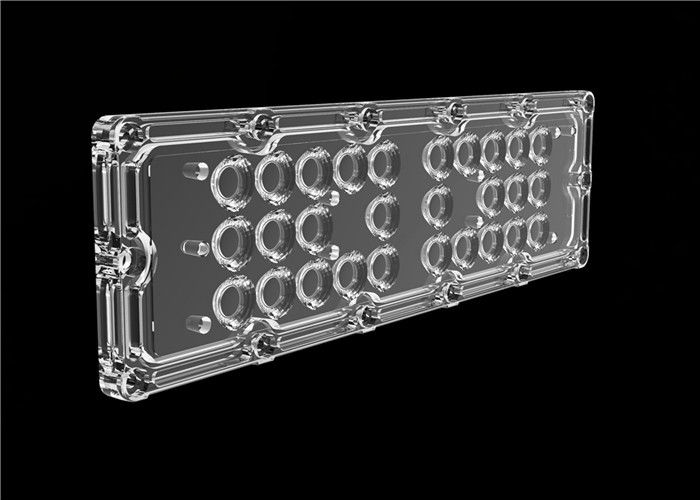

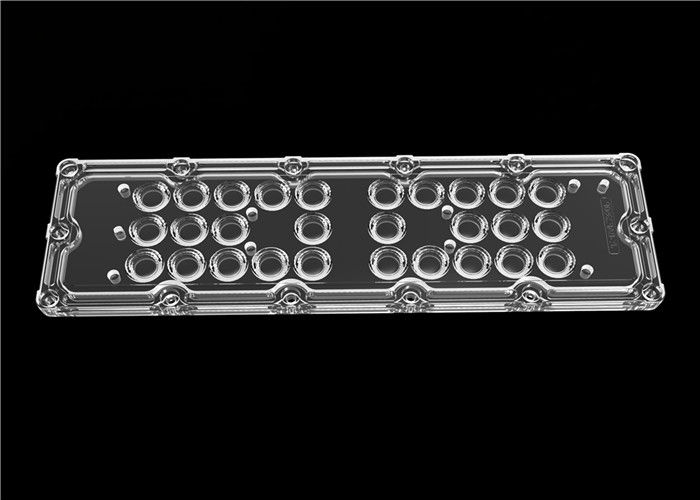

5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink

    •  5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink
    •  5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink
  •  5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAF2890P-23670

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PMMA / PC Beam Angle: 90 Degree
    Efficiency: 93% Dimension: L236*W70
    LED Chips: 5050 Accessory: AL PCB + Silicone Gasket + Heat Sink
    Application: LED Tunnel Lighting

    5050 LED 28 in 1 Multi LED Lens For Tunnel Lighting With Heat Sink



    LED lenses come in various shapes and sizes, for example round, square and hexagonal.

    Common lens materials include plastic and silicone. Therefore some are rigid and some are flexible.

    • Lenses are designed for use with single or multiple LEDs. This includes LED modules or strips.
    • They sit over the LEDs to create the desired lighting effect. Various properties of LED lenses enable precise control over the beams of light.
    • LED lenses can also offer a nice aesthetic appearance by masking the LED components within.
    • A simple Lens consists of a single piece of material, while a compound Lens consists of several simple lenses (elements), usually along a common axis.



    Part Number

    JY-BAF2890P-23670

    Beam angle

    90 Degree

    Dimension

    L236*W70

    Lens Material

    PMMA / PC

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED Tunnel Lighting



    Delivery and Shipping:



    Trade Terms EXW , FOB , CNF , CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    (1), LEDs generally emit light at a 120-degree viewing angle.

    LED applications that require more focused light often use a secondary optic that is placed over the

    LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



    (2), Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

    The lens itself clips securely into the holder, but the holder does need to be externally adhered.

    In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.





    LED lens Drawing:





     5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink







    IES:





     5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink







    PCB Board Size:



     5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink





    Heat Sink Size:



     5050 Multi LED Lens 28 In 1 Single / Multiple LEDs Tunnel Lighting With Heat Sink
