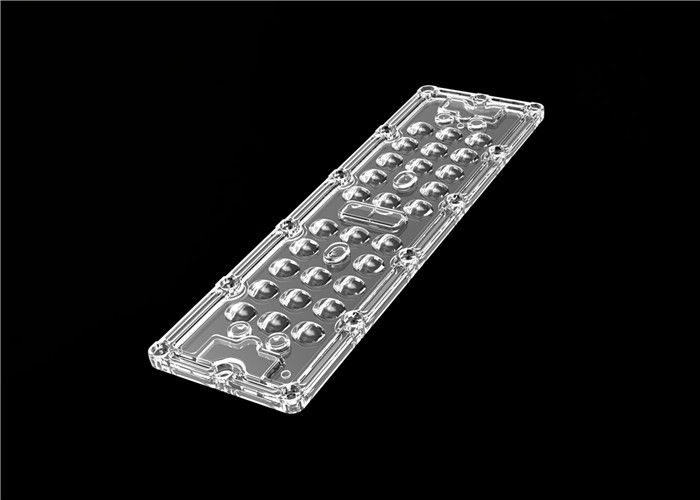

Vertical 28 in 1 LED Street Light Module 80*150 Degree Lens With Heat Sink

Vertical 28 in 1 LED Street Light Module 80*150 Degree Lens With Heat Sink

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAFS2880150P-23670

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Get Best Price Contact Now

Detail Information

Material: PC Beam Angle: 80*150 Degree
Efficiency: 93% Dimension: L236*W70
LED Chips: 5050 Accessory: AL PCB+ Silicone Gasket+ Heat Sink
Application: LED Road Lamp
High Light:

street light lens

,

power led lens

Product Description

Vertical 28 in 1 LED Street Light Module 80*150 Degree Lens With Heat Sink



Spark have various Patterns of Street Light Lens in single LED Lens as well as Cluster of LED Lenses

which can be used as per convenience of your PCB Design.



Street light lenses are available in different shapes like free form, asymmetric and symmetric shapes.



  1. A Lens is a Transmissive Optical Device that affects the focus of a light beam through refraction.
  2. A simple Lens consists of a single piece of material, while a compound Lens consists of several simple lenses (elements), usually along a common axis.
  3. Depending on the results you would like to achieve in your LED Street Light / Road Light luminaire, you can select various optical beam angles to form an intense beam to suit your needs.



Part Number

JY-BAFS2880150P-23670

Beam angle

80*150 Degree

Dimension

L236*W70

Lens Material

PMMA / PC

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Road Lamp



Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





Materials used for manufacturing these lenses are PMMA or PC (poly-carbonate). We have Capability

and Facility to develop Custom Design of LED Lens according to requirement application.



Optics allow you to control your illumination pattern, either diffusing it or focusing it as your application requires. Secondary LED Optics provide a standard LED with collimation for spot, medium, wide and elliptical illumination patterns.





LED lens Drawing:





Vertical 28 in 1 LED Street Light Module 80*150 Degree Lens With Heat Sink 0









PCB Board's Size:





Vertical 28 in 1 LED Street Light Module 80*150 Degree Lens With Heat Sink 1









Heat Sink's Size:





Vertical 28 in 1 LED Street Light Module 80*150 Degree Lens With Heat Sink 2











Vertical 28 in 1 LED Street Light Module 80*150 Degree Lens With Heat Sink 3
