Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips

Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips

    • Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips
    • Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips
  • Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA6490120P-23670

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PMMA Beam Angle: 90*120 Degree
    Efficiency: 93% Dimension: L236*W70
    LED Chips: SMD 3030 Application: LED Tunnel Lighting

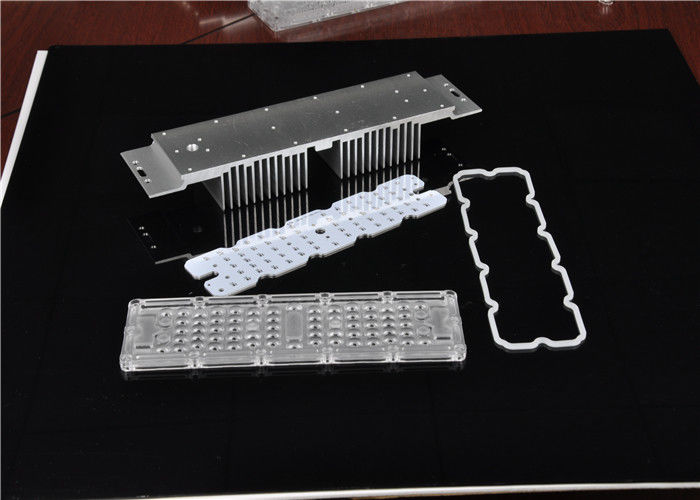

    Accessories: PCB Board + Silicone Gasket + Heat Sink

    Waterproof Multi 64 Led PMMA Optical Lens LED Light Lens With 3030SMD LED



    Do I lose brightness when using optics?

    Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing by

    the total amount of light without an optic directly at the LED source.



    The simple answer is yes. Carclo optics uses a technology called total internal reflection (TIR), so there

    is light lose during the collimation process.



    Optics allow you to control your illumination pattern, either diffusing it or focusing it as your application requires. Secondary LED Optics provide a standard LED with collimation for spot, medium, wide and elliptical illumination patterns.





    Part Number

    JY-BAA6490120P-23670

    Beam angle

    90*120 Degree

    Dimension

    L236*W70

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED Tunnel Light



    Delivery and Shipping:



    Trade Terms EXW, FOB, CNF, CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc



    • This LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 30W,60W,90W and so on .
    • It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
    • Industry-leading thermal management utilizing technology.
    • The LED retrofit kits contain no any mercury or lead.
    • Does not produce UV rays that harm people’s eyes.
    • Operating temperature range: from 35 Celsius degree to 70 Celsius degree.





    LED lens Drawing:





    Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips







    IES:







    Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips







    PCB Board's Size:





    Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips











    Waterproof 30W Multi LED Lens No Mercury Inside With 3030 SMD LED Chips
