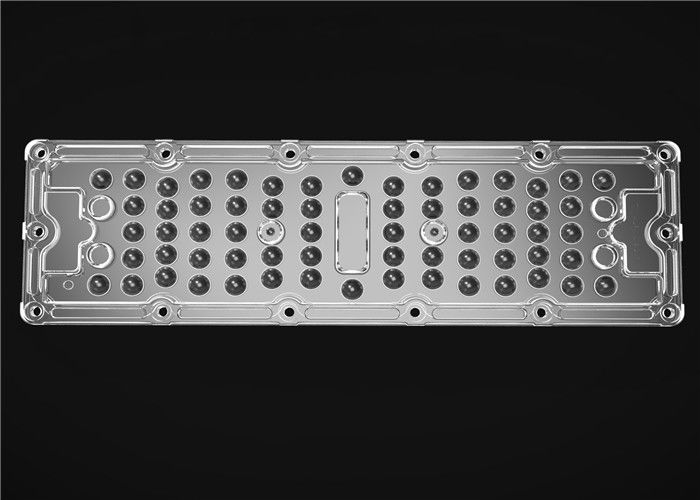

PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips

PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips

    • PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips
    • PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips
  • PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA6490P-23570

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PMMA Beam Angle: 90 Degree
    Efficiency: 93% Dimension: L236*W70
    LED Chips: 3030 Application: LED High Bay Lighting / Tunnel Lighting
    Accessories: PCB Board + Silicone Gasket + Heat Sink

    LED High Bay Light Lens Array 90 Degree With Round Pattern For 3030 LED



    LENSES:
    LED lenses come in various shapes and sizes, for example round, square and hexagonal.

    Common lens materials include plastic and silicone. Therefore some are rigid and some are flexible.

    1. This refers to the number of LEDs that the lens is designed for. They can be for single LEDs or arrays of LEDs. Multiple LED lenses are ideal for wide area lighting, for example street lighting.
    2. Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible LED options.
    3. Some manufacturers pre-mount LEDs onto a board ready for the lens/reflector to sit over, saving you having to solder and line the LEDs up accurately.



    Part Number

    JY-BAA6490P-23570

    Beam angle

    90 Degree

    Dimension

    L236*W70

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED High Bay Lighting / Tunnel Lighting



    Delivery and Shipping:



    Trade Terms EXW, FOB, CNF, CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    ***Lenses are designed for use with single or multiple LEDs. This includes LED modules or strips.
    They sit over the LEDs to create the desired lighting effect.



    ***Various properties of LED lenses enable precise control over the beams of light. LED lenses can

    also offer a nice aesthetic appearance by masking the LED components within.

    LED reflectors sit over the LED to alter the beam of light.







    LED lens Drawing:





    PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips







    IES:







    PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips









    Heat Sink's Size:







    PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips











    PMMA Material LED Lens Array Rectangular Pattern 90 Degree For 3030 Chips
