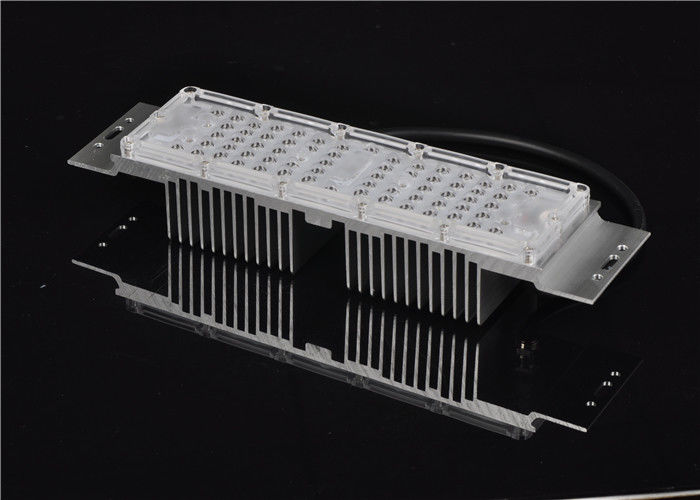

3030 SMD LED Street Light Module Lens 150*80 Degree With Silicone Gasket

3030 SMD LED Street Light Module Lens 150*80 Degree With Silicone Gasket

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAA64S80150P-23570

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Get Best Price Contact Now

Detail Information

Material: PC Beam Angle: 150*80 Degree
Efficiency: 93% Dimension: L236*W70
LED Chips: SMD 3030 Accessory: PCB Board + Silicone Gasket + Heat Sink
Application: LED Street Light
High Light:

power led lens

,

square led lens

Product Description

150*80 Degree PMMA Optical Lens LED Street Light Module With 3030 SMD



Do I lose brightness when using optics?

Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing

by the total amount of light without an optic directly at the LED source. The simple answer is yes.



Carclo optics uses a technology called total internal reflection (TIR), so there is light lose during the collimation process.

  1. This LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 30W,60W,90W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology.



Part Number

JY-BAA64S80150P-23570

Beam angle

150*80 Degree

Dimension

L236*W70

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Street Light



Delivery and Shipping:



Trade Terms EXW, FOB, CNF, CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





The lens itself clips securely into the holder, but the holder does need to be externally adhered. In

the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.



Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

The lens itself clips securely into the holder, but the holder does need to be externally adhered.







LED lens Drawing:





3030 SMD LED Street Light Module Lens 150*80 Degree With Silicone Gasket 0







IES:







3030 SMD LED Street Light Module Lens 150*80 Degree With Silicone Gasket 1







Gasket's Size:







3030 SMD LED Street Light Module Lens 150*80 Degree With Silicone Gasket 2











3030 SMD LED Street Light Module Lens 150*80 Degree With Silicone Gasket 3
