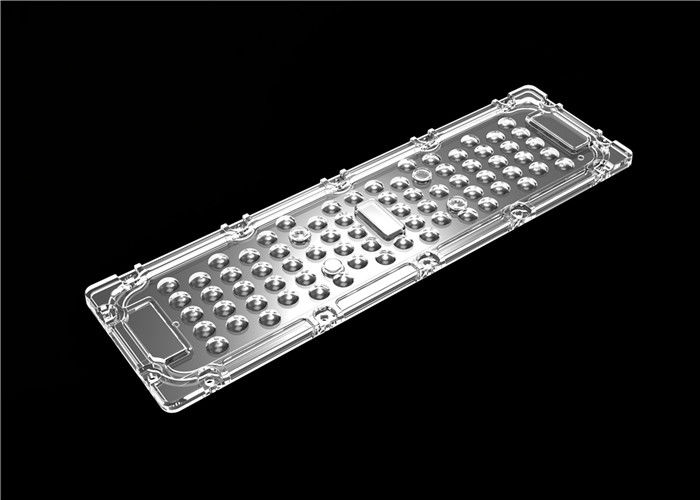

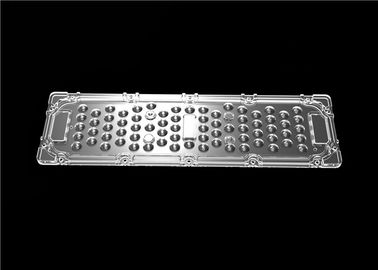

Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting

Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting

    • Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting
    • Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting
  • Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA7290P-25074

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PMMA Beam Angle: 90 Degree
    Efficiency: 93% Dimension: L250*W74
    LED Chips: SMD 3030 Application: LED High Bay Light / Tunnel Lighting

    Symmetric 90 Degree Multi 72 In 1 LED Lamp Lens For Tunnel Lighting



    Do I lose brightness when using optics?

    Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing

    by the total amount of light without an optic directly at the LED source.



    1, The simple answer is yes. Carclo optics uses a technology called total internal reflection (TIR), so

    there is light lose during the collimation process.



    2, The lens itself clips securely into the holder, but the holder does need to be externally adhered.

    In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.



    Part Number

    JY-BAA7290P-25074

    Beam angle

    90 Degree

    Dimension

    L250*W74

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED High Bay Light / Tunnel Lighting



    Delivery and Shipping:



    Trade Terms EXW, FOB, CNF, CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    • Lenses are made from transparent materials such as glass, polymers etc which are ground and polished to a desired shape. A Lens can focus light to form an image.
    • The large product range includes specialised optics with ultra narrow, ultra wide, asymmetric and freeform light distribution.
    • We have small form factor arrays, cluster holders, linear strip and IP rated optics – all of which are optimised for a wide range of LEDs.





    LED lens Drawing:





    Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting











    IES:





    Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting











    Symmetric 90 Degree High Power LED Lens , 72 In 1 PMMA LED Lens For Tunnel Lighting
