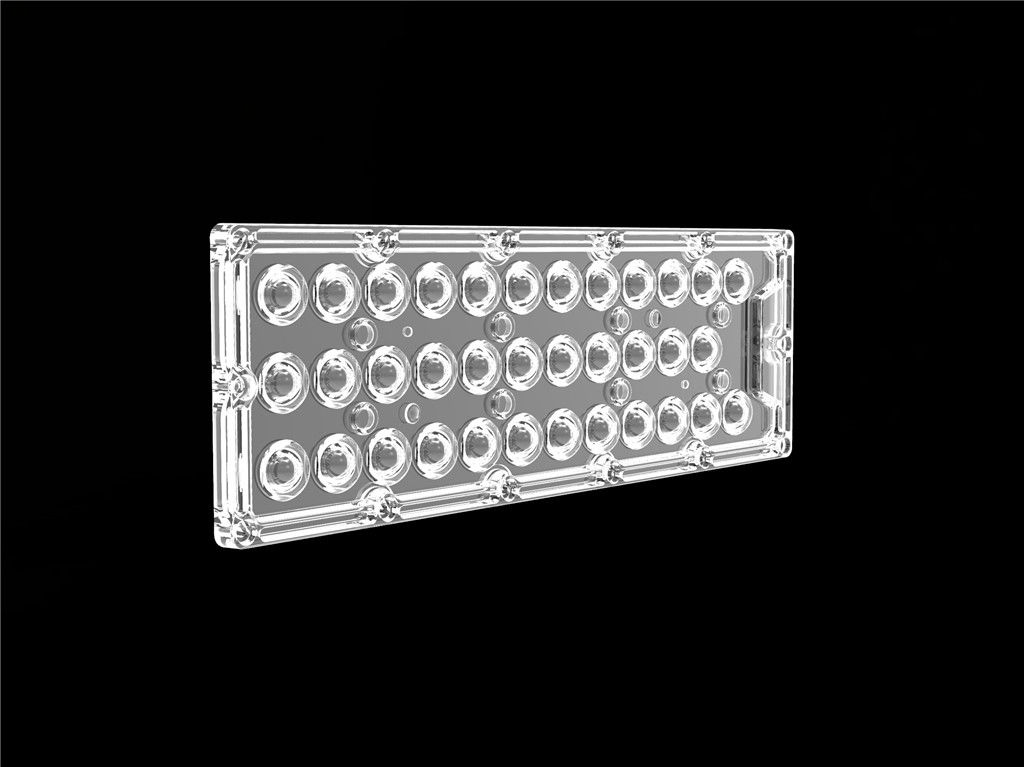

    • High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1

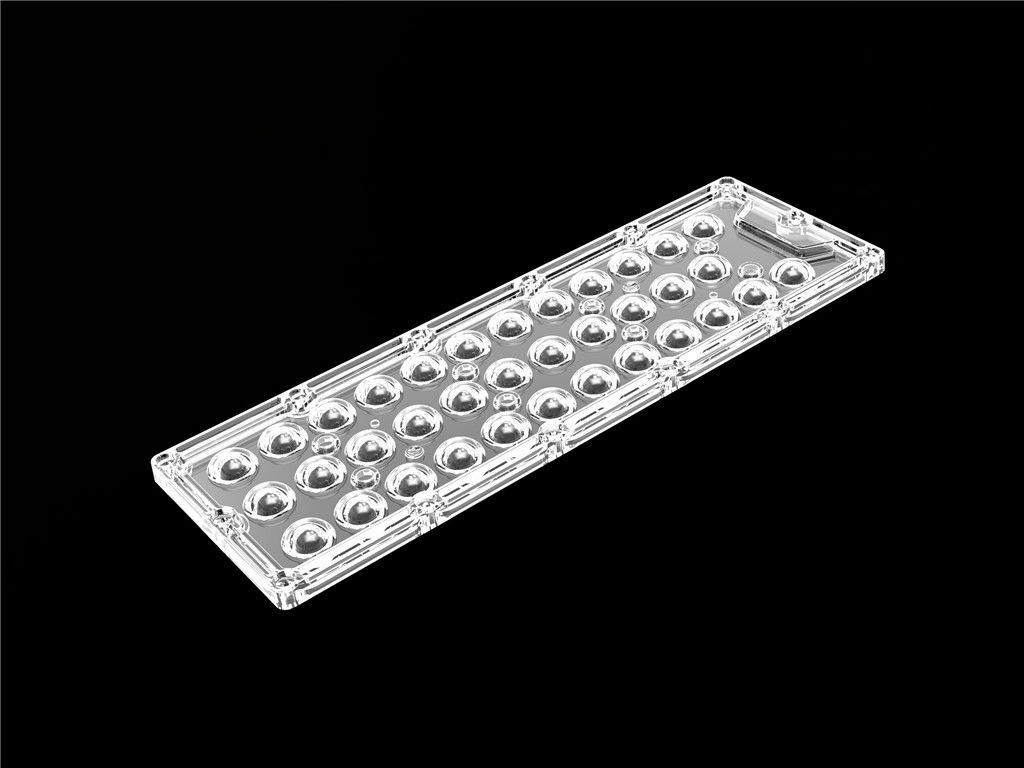

    • High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1

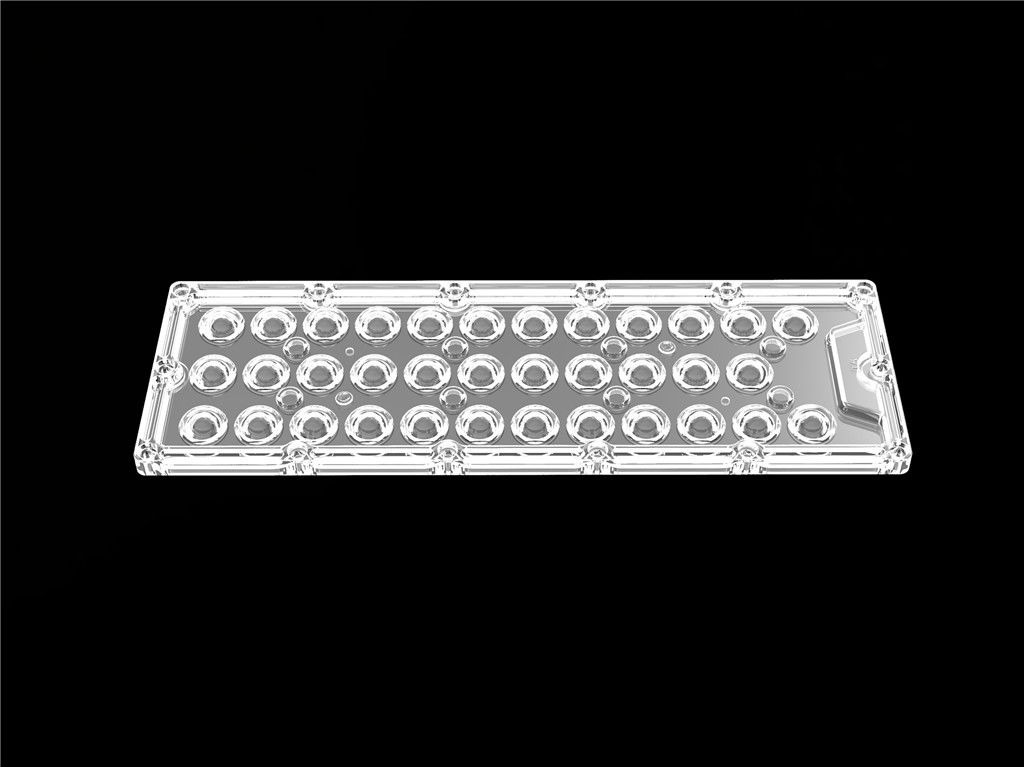

    • High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1

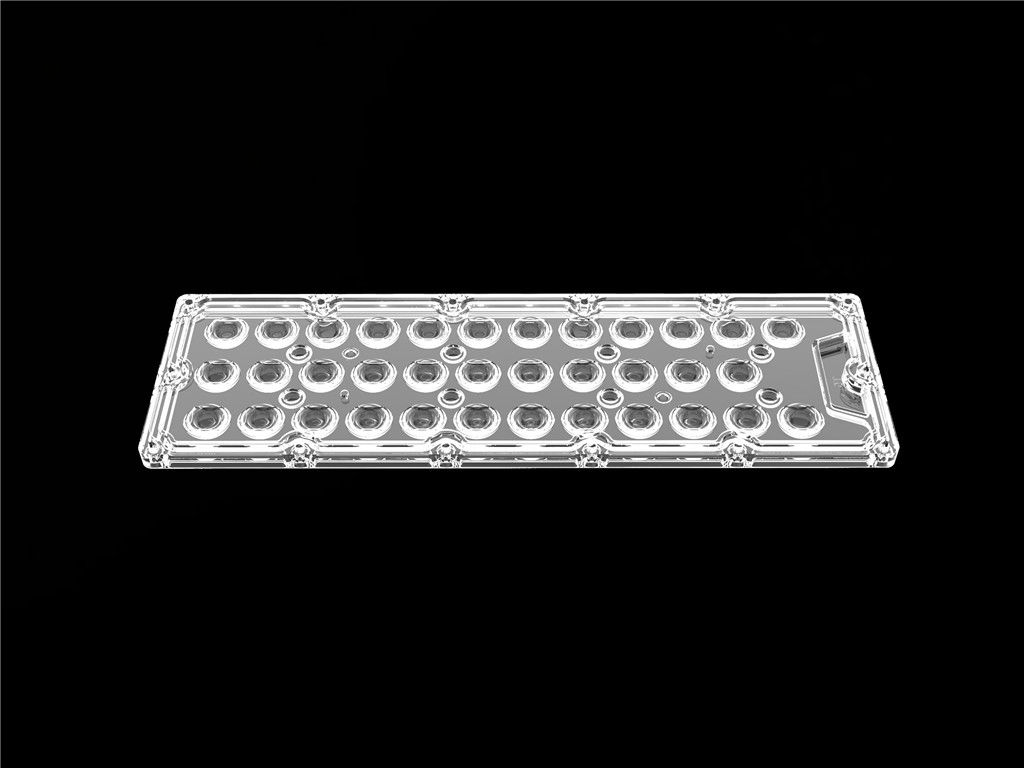

    • High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1
    • High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1
  • High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA35TYPE5-27795 LED Optics Lenses

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Name: LED Optics Lenses Beam Angle: 90 Degree
    Efficiency: 93% Dimension: D235*H9.4mm
    LED Chips: Lumen Feature: Lowest Total Cost Solution

    High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1



    LED Optics Lenses Feature



    1, LED applications that require more focused light often use a secondary optic that is placed over

    the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



    2, Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

    The lens itself clips securely into the holder, but the holder does need to be externally adhered.



    3, In the case of LED stars, optic holders have four legs that sit down into the grooves of the star

    board. Triple LED stars are built with three holes in the star board for the legs of the optic.







    Part Number

    JY-BAA35TYPE5-27795 LED Optics Lenses

    Beam angle

    90 Degree

    Dimension

    D235*H9.4mm

    Lens Material

    PC

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED High Bay Light



    Delivery and Shipping:



    Trade Terms EXW , FOB , CNF , CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc



    • It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
    • Industry-leading thermal management utilizing technology.
    • Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
    • The LED retrofit kits contain no any mercury or lead.
    • This LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.





    LED lens Drawing:





    High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1

    IES:





    High Efficiency Square LED Optics Lenses Lowest Total Cost Solution 35 In 1
