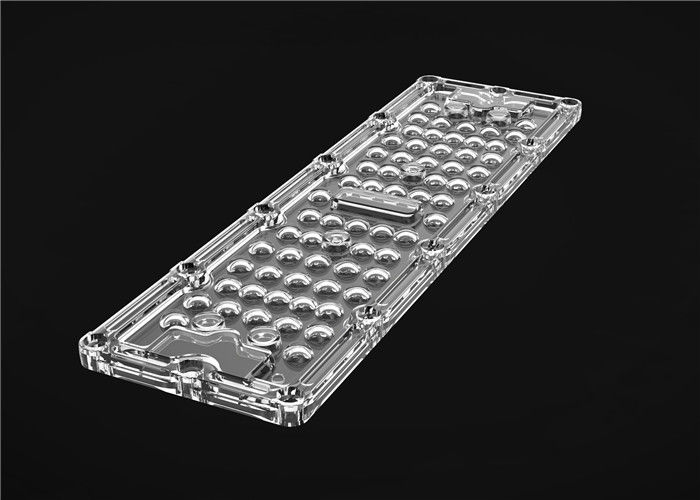

Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting

Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting

    • Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting
    • Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting
  • Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA6490P-23570

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PMMA Beam Angle: 90 Degree
    Efficiency: 93% Dimension: L236*W70
    LED Chips: CREE 3030 Application: LED High Bay Lighting / Tunnel Lighting
    Accessories: PCB Board + Silicone Gasket + Heat Sink

    Round Pattern 90 Degree 64 in 1 Multi LED Optical Lens For Tunnel Lighting



    LED applications that require more focused light often use a secondary optic that is placed over the

    LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



    Most optics are cone shaped and need an optic holder to hold the lens in place over the LED. The

    lens itself clips securely into the holder, but the holder does need to be externally adhered.

    • LED lenses come in various shapes and sizes, for example round, square and hexagonal.

    •

      Common lens materials include plastic and silicone. Therefore some are rigid and some are flexible.

    • Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible LED options.
    • Triple LED stars are built with three holes in the star board for the legs of the optic.



    Part Number

    JY-BAA6490P-23570

    Beam angle

    90 Degree

    Dimension

    L236*W70

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED High Bay Lighting / Tunnel Lighting



    Delivery and Shipping:



    Trade Terms EXW, FOB, CNF, CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    1, Optics allow you to control your illumination pattern, either diffusing it or focusing it as your

    application requires. Secondary LED Optics provide a standard LED with collimation for spot,

    medium, wide and elliptical illumination patterns.



    2, Various properties of LED lenses enable precise control over the beams of light. LED lenses can

    also offer a nice aesthetic appearance by masking the LED components within.

    LED reflectors sit over the LED to alter the beam of light.







    LED lens Drawing:





    Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting







    IES:







    Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting











    Round Pattern 3030 Cree LED Lens , L236*W70mm Size Cree LED Optics For Tunnel Lighting
