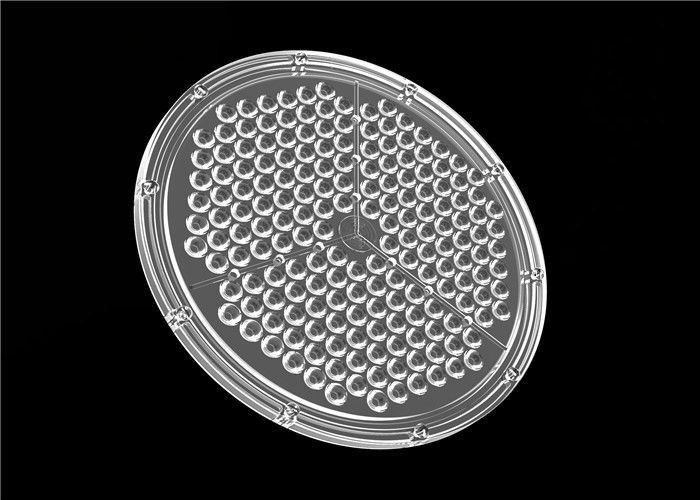

180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree

180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree

  • 180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree
  • 180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree
180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree
Product Details:
Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAA18090P-23510
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Contact Now
Detailed Product Description
Material: PC Beam Angle: 90 Degree
Efficiency: 93% Dimension: D235*H9.4mm
LED Chips: Lumen Application: LED High Bay Light
High Light:

led spot lens

,

led lamp lens

180 in 1 Round Lens LED Optics Lenses With PCB Board 90 Degree



1, LED applications that require more focused light often use a secondary optic that is placed over

the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



2, Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

The lens itself clips securely into the holder, but the holder does need to be externally adhered.



3, In the case of LED stars, optic holders have four legs that sit down into the grooves of the star

board. Triple LED stars are built with three holes in the star board for the legs of the optic.







Part Number

JY-BAA18090P-23510

Beam angle

90 Degree

Dimension

D235*H9.4mm

Lens Material

PC

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED High Bay Light



Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc



  • It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  • Industry-leading thermal management utilizing technology.
  • Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  • The LED retrofit kits contain no any mercury or lead.
  • This LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.





LED lens Drawing:





180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree 0









PCB Board Size:





180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree 1





Gasket Size:





180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree 2







IES:





180 In 1 Circular LED Multi Lens , COB LED Lens With PCB Board 90 Degree 3
