Transmittance 93% SMD LED Lens , LED Reflectors Optics Operating Temperature Below 90℃

Transmittance 93% SMD LED Lens , LED Reflectors Optics Operating Temperature Below 90℃

high bay lens

ceiling light lenses

Place of Origin:

Zhejiang, China

Brand Name:

Spark

Certification:

CE, SGS, ROHS

Model Number:

JY-AAL04160100P-5050

Contact Us
Request A Quote
Product Details
Material:
PMMA
Beam Angle:
100*160 Degree
Efficiency:
93%
Dimension:
50*50mm
LED Chips:
3535 / 5050
Certification:
CE, ROHS, SGS
Application:
High Bay Lighting / Tunnel Lighting
Highlight:

high bay lens

,

ceiling light lenses

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
In Carton Box
Delivery Time
2-5 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
100000pcs/per week
Product Description

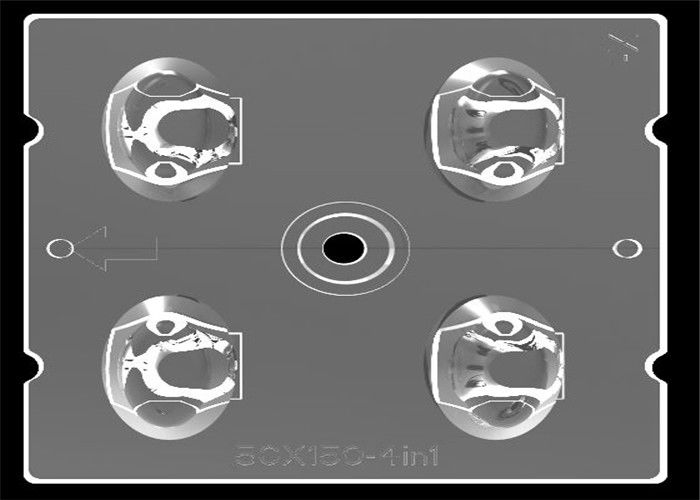

100*160 Degree 4 in 1 LED Lenses LED High Bay Light Fixtures With 3535 LED



How do secondary lens optics work?



1, LEDs generally emit light at a 120-degree viewing angle.



2, LED applications that require more focused light often use a secondary optic that is placed over

the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.

Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.



3, The lens itself clips securely into the holder, but the holder does need to be externally adhered.

In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board. Triple LED stars are built with three holes in the star board for the legs of the optic.







Part Number

JY-AAL04160100P-5050

Beam angle

100*160 Degree

Dimension

50*50mm

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

High bay lighting / Tunnel lighting



Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





(A) The large product range includes specialised optics with ultra narrow, ultra wide, asymmetric and freeform light distribution.



(B) We have small form factor arrays, cluster holders, linear strip and IP rated optics – all of which are optimised for a wide range of LEDs.







LED lens Drawing:





Transmittance 93% SMD LED Lens , LED Reflectors Optics Operating Temperature Below 90℃ 0







IES:









Transmittance 93% SMD LED Lens , LED Reflectors Optics Operating Temperature Below 90℃ 1











Transmittance 93% SMD LED Lens , LED Reflectors Optics Operating Temperature Below 90℃ 2
