Glare Resistant Street Light Lens 72 In 1 SMD 3030 For Outdoor LED Lighting

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA7280150P-25074

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
Highlight:

led dome lens

,

3030 led lens

Material:
PC
Beam Angle:
80*150 Degree
Efficiency:
93%
Dimension:
L250*W74
LED Chips:
SMD 3030
Accessory:
AL PCB+ Silicone Gasket
Application:
LED Street Light
Material:
PC
Beam Angle:
80*150 Degree
Efficiency:
93%
Dimension:
L250*W74
LED Chips:
SMD 3030
Accessory:
AL PCB+ Silicone Gasket
Application:
LED Street Light
Description

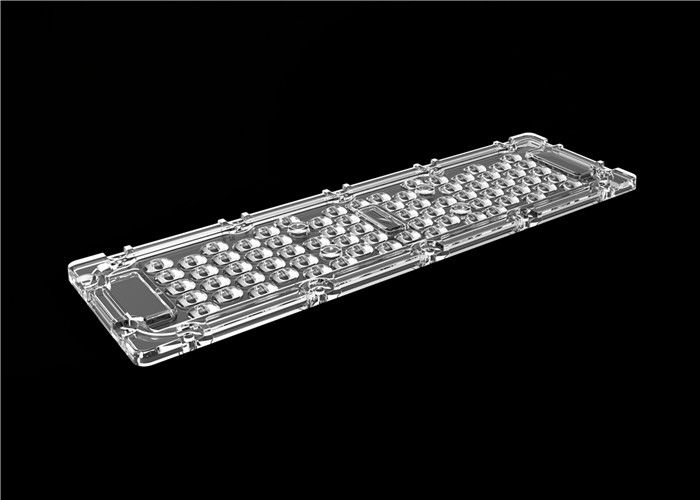

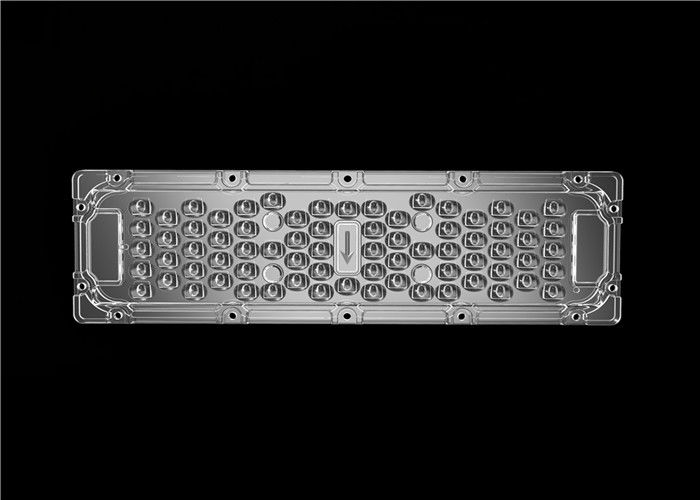

Glare Resistant Street Light Lens 72 In 1 SMD 3030 For Outdoor LED Lighting

72 in 1 Optical Lens SMD 3030 LED Street Light Components With 80*150 Degree



About LED lens, there are a wide array of standard optics available to order with many being

stocked items in the UK and USA.



  • Sizes available from 10mm – 60mm with a full range of beam angels and surface finishes suitable for any application.
  • The large product range includes specialised optics with ultra narrow, ultra wide, asymmetric
  • and freeform light distribution.
  • We have small form factor arrays, cluster holders, linear strip and IP rated optics – all of which are optimised for a wide range of LEDs.



Part Number

JY-BAA7280150P-25074

Beam angle

80*150 Degree

Dimension

L250*W74

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Street Light



Delivery and Shipping:



Trade Terms EXW, FOB, CNF, CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





1, Optics allow you to control your illumination pattern, either diffusing it or focusing it as your

application requires.



2, Secondary LED Optics provide a standard LED with collimation for spot, medium, wide and

elliptical illumination patterns. We expand on LED optics in our post called: LED Optics Explained.







LED lens Drawing:





Glare Resistant Street Light Lens 72 In 1 SMD 3030 For Outdoor LED Lighting 0











Gasket's Size:







Glare Resistant Street Light Lens 72 In 1 SMD 3030 For Outdoor LED Lighting 1









PCB Board's Size:



Glare Resistant Street Light Lens 72 In 1 SMD 3030 For Outdoor LED Lighting 2







IES:







Glare Resistant Street Light Lens 72 In 1 SMD 3030 For Outdoor LED Lighting 3
