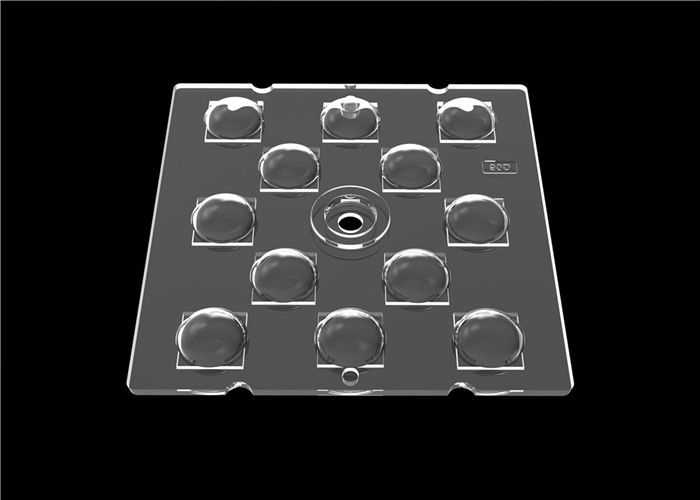

High Power Multi LED Lens Transparent 90 Degree Beam Angle For Tunnel Lights

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA1290P-5050

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
High Light:

mini led lens

,

rgb led lens

Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
L50*W50
LED Chips:
3030
Accessory:
AL PCB+ Silicone Gasket
Application:
LED Tunnel Light
Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
L50*W50
LED Chips:
3030
Accessory:
AL PCB+ Silicone Gasket
Application:
LED Tunnel Light
Description
High Power Multi LED Lens Transparent 90 Degree Beam Angle For Tunnel Lights

High Power 3030 Multi LED Light Lens 90 Degree For Tunnel Lights



A Lens is a Transmissive Optical Device that affects the focus of a light beam through refraction.



A simple Lens consists of a single piece of material, while a compound Lens consists of several simple lenses (elements), usually along a common axis.



Lenses are made from transparent materials such as glass, polymers etc which are ground and polished to a desired shape. A Lens can focus light to form an image.





Part Number

JY-BAA1290P-5050

Beam angle

90 Degree

Dimension

L50*W50

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Tunnel Light



Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc



  1. LED applications that require more focused light often use a secondary optic that is placed over the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.
  2. Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.
  3. The lens itself clips securely into the holder, but the holder does need to be externally adhered.
  4. In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.



LED lens Drawing:



High Power Multi LED Lens Transparent 90 Degree Beam Angle For Tunnel Lights 0







PCB Board's Size:



High Power Multi LED Lens Transparent 90 Degree Beam Angle For Tunnel Lights 1





High Power Multi LED Lens Transparent 90 Degree Beam Angle For Tunnel Lights 2
