Product Details
Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAA12090P-28670
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Material: |
PC |
Beam Angle: |
30*90 Degree |
Efficiency: |
93% |
Dimension: |
L286*W70mm |
LED Chips: |
CREE XTE / XPG |
Accessory: |
AL PCB+ Silicone Gasket |
Material: |
PC |
Beam Angle: |
30*90 Degree |
Efficiency: |
93% |
Dimension: |
L286*W70mm |
LED Chips: |
CREE XTE / XPG |
Accessory: |
AL PCB+ Silicone Gasket |

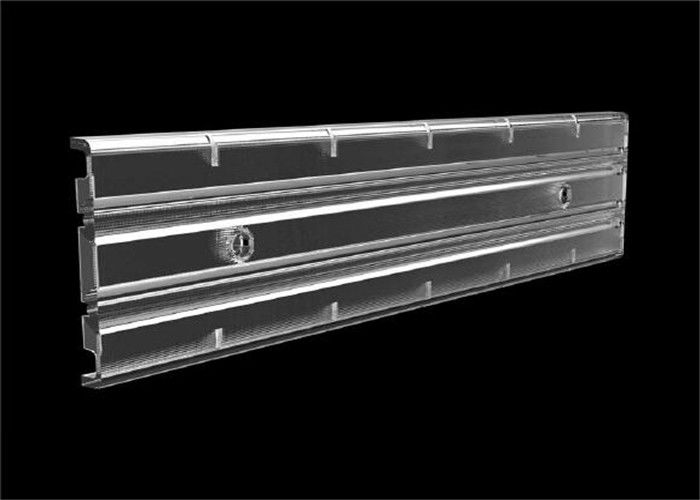

CREE XTE / XPG PC Lens LED Linear Light Lens 30*90 Degree With PCB Board
Application: Led Optical Lenses used in the street light, high way led lamp, tunnel lamp, square lamp, road lamp, city lighting, parking spot lamp, track lighting fixtures, scenery area, retail lighting and other applications where high luminous flux is desired.
Spark are Manufacturer of all types of LED Lens. We have various Patterns of Light Lens in single
LED Lens as well as Cluster of LED Lenses which can be used as per convenience of your PCB
Design.
LED light lenses are available in different shapes like free form, asymmetric and symmetric shapes.
Materials used for manufacturing these lenses are PMMA or PC (poly-carbonate).
|
Part Number |
JY-BAA12090P-28670 |
|
Beam angle |
30*90 Degree |
|
Dimension |
L286*W70mm |
|
Lens Material |
PC |
|
Transmittance |
93% |
|
Working Temperature |
Lens ≤ 90℃ |
|
Application |
LED Lighting |
Delivery and Shipping:
| Trade Terms | EXW , FOB , CNF , CIF |
| Payment Terms | T/T , PayPal , Western Union, Moneygram |
| Lead Time | 1-2 working days for samples order, 5-7 working days for bulk order |
| Shipment Terms | By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc |
*****There are a wide array of standard optics available to order with many being stocked items in the
UK and USA. Sizes available from 10mm – 60mm with a full range of beam angels and surface finishes suitable for any application.
*****The large product range includes specialised optics with ultra narrow, ultra wide, asymmetric and freeform light distribution. We have small form factor arrays, cluster holders, linear strip and IP rated optics – all of which are optimised for a wide range of LEDs.
LED Lens Drawing:
PCB Board Size:
IES:
