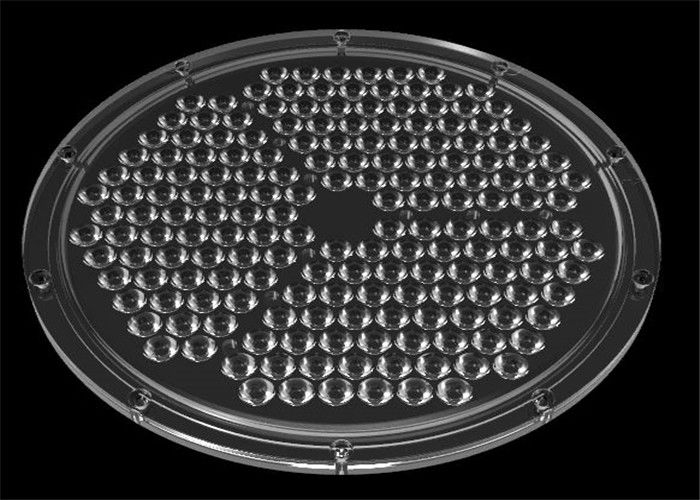

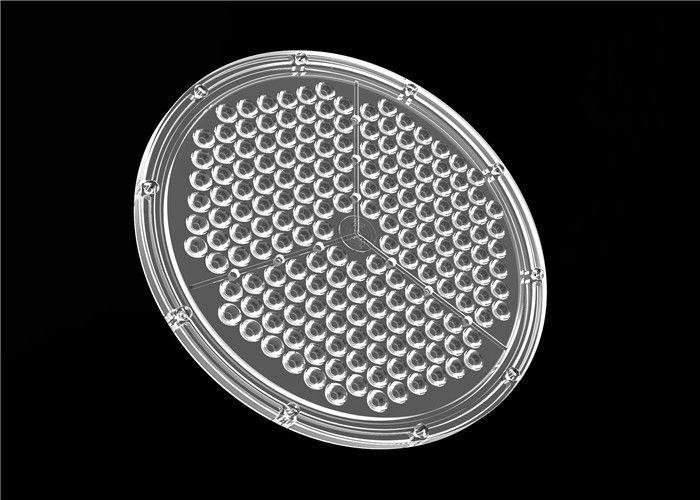

UFO Shaped LED Lens Array High Transparent PCB Module With Samsung LED Chips

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA18090P-23510

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
Highlight:

led diffuser lens

,

wide angle led lens

Material:
PC
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
D235*H9.4mm
LED Chips:
Samsung
Application:
LED High Bay Light
Material:
PC
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
D235*H9.4mm
LED Chips:
Samsung
Application:
LED High Bay Light
Description
UFO Shaped LED Lens Array High Transparent PCB Module With Samsung LED Chips

High Transparent LED Lens Array 3030 UFO High Bay Light Lens With PC



We are Manufacturer of all types of LED Lens. We have various Patterns of Street Light Lens in single LED Lens as well as Cluster of LED Lenses which can be used as per convenience of your PCB Design. LED light lenses are available in different shapes like free form, asymmetric and symmetric shapes.



Materials used for manufacturing these lenses are PMMA or PC (poly-carbonate). We have Capability and Facility to develop Custom Design of LED Lens according to requirement application.

  • The total cost is significantly reduced compared with using new complete LED fixtures.
  • We are Capable to develop custom LED Lens according to requirement.
  • It’s the lowest total cost solution, they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used.
  • This LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.





Part Number

JY-BAA18090P-23510

Beam angle

90 Degree

Dimension

D235*H9.4mm

Lens Material

PC

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Highbay Light



Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





1, LED lenses come in various shapes and sizes, for example round, square and hexagonal.

Common lens materials include plastic and silicone. Therefore some are rigid and some are flexible.


2, Lenses are designed for use with single or multiple LEDs. This includes LED modules or strips.
They sit over the LEDs to create the desired lighting effect.







LED lens Drawing:





UFO Shaped LED Lens Array High Transparent PCB Module With Samsung LED Chips 0









PCB Board Size:







UFO Shaped LED Lens Array High Transparent PCB Module With Samsung LED Chips 1





IES:





UFO Shaped LED Lens Array High Transparent PCB Module With Samsung LED Chips 2









UFO Shaped LED Lens Array High Transparent PCB Module With Samsung LED Chips 3
