CREE 3030 LED Lens Array Round Shaped 234 LEDs In 1 With PCB / Gasket

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA23490P-26410

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
Highlight:

cree led lens

,

wide angle led lens

Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
D264*H9.6
LED Chips:
CREE 3030
Accessory:
AL PCB+ Silicone Gasket
Application:
LED Highbay Light
Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
D264*H9.6
LED Chips:
CREE 3030
Accessory:
AL PCB+ Silicone Gasket
Application:
LED Highbay Light
Description
CREE 3030 LED Lens Array Round Shaped 234 LEDs In 1 With PCB / Gasket

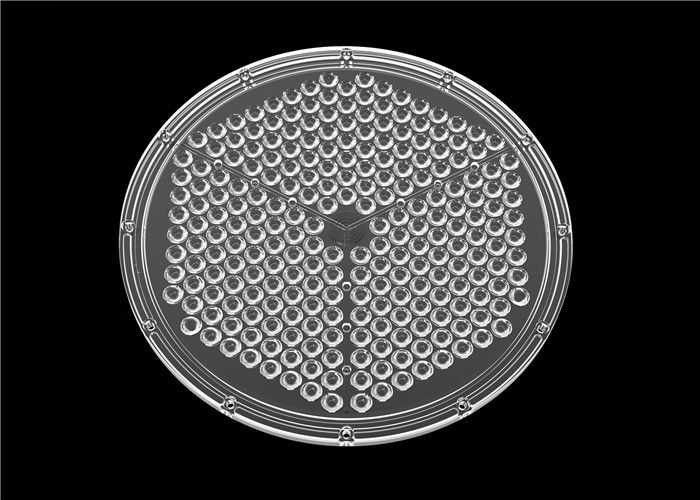

Led PMMA Lens CREE 3030 Round LED Lens Array 234 in 1 With PCB / Gasket



1, Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing

by the total amount of light without an optic directly at the LED source.



2, The simple answer is yes. Carclo optics uses a technology called total internal reflection (TIR), so

there is light lose during the collimation process.



3, Lenses are made from transparent materials such as glass, polymers etc which are ground and polished to a desired shape. A Lens can focus light to form an image.



4, In general, when talking about lens optics the larger the optic the easier it is to collimate light into a tighter pattern. Another consideration when trying to achieve a tight spot is the size of the LED die.

The smaller the size of the die the tighter the spot.





Part Number

JY-BAA23490P-26410

Beam angle

90 Degree

Dimension

D264*H9.6

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED highbay light



Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





How do secondary lens optics work?

  • LEDs generally emit light at a 120-degree viewing angle. LED applications that require more focused light often use a secondary optic that is placed over the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.
  • Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.
  • The lens itself clips securely into the holder, but the holder does need to be externally adhered. In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.





LED lens' Drawing:





CREE 3030 LED Lens Array Round Shaped 234 LEDs In 1 With PCB / Gasket 0









Gasket Size:





CREE 3030 LED Lens Array Round Shaped 234 LEDs In 1 With PCB / Gasket 1







IES:





CREE 3030 LED Lens Array Round Shaped 234 LEDs In 1 With PCB / Gasket 2









CREE 3030 LED Lens Array Round Shaped 234 LEDs In 1 With PCB / Gasket 3
