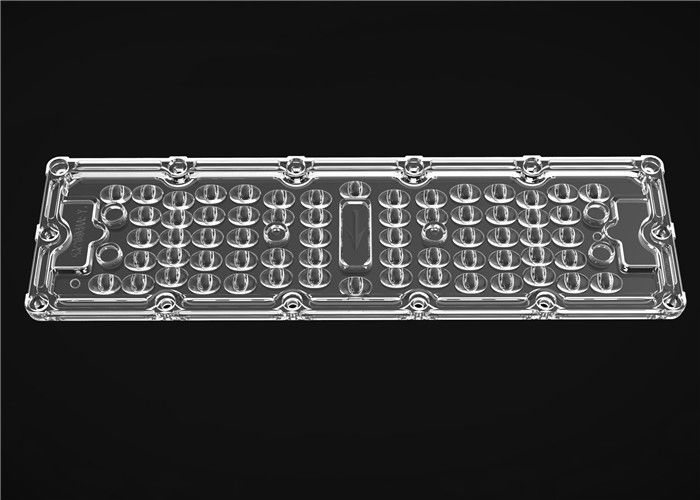

Rectangular LED Lens Array 64 In 1 LED Street Light Lens For Outdoor Lamp

Rectangular 64 In 1 LED Lens Array Led Streetight Lens For Street Lamp

How do secondary lens optics work?

LEDs generally emit light at a 120-degree viewing angle. LED applications that require more focused

light often use a secondary optic that is placed over the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.

1. Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.
2. The lens itself clips securely into the holder, but the holder does need to be externally adhered.
3. In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.
4. Triple LED stars are built with three holes in the star board for the legs of the optic.

Delivery and Shipping:

Optics are a crucial element in every SSL street light / road light design. Spark offers a wide variety of optical and reflector solutions in various types of lenses; single-LED optics, multi-LED optics, reflectors

or specialty optics.

Depending on the results you would like to achieve in your LED Street Light / Road Light luminaire, you can select various optical beam angles to form an intense beam to suit your needs. See the table below for a list of recommended optical solutions that can help you build your solid-state lighting (SSL) street light / road light fixture.
