Product Details
Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAA6430P-23670
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Material: |
PC |
Beam Angle: |
30 Degree |
Efficiency: |
93% |
Dimension: |
L236*W70 |
LED Chips: |
Osram 3030 |
Application: |
LED Floodlight |
Material: |
PC |
Beam Angle: |
30 Degree |
Efficiency: |
93% |
Dimension: |
L236*W70 |
LED Chips: |
Osram 3030 |
Application: |
LED Floodlight |

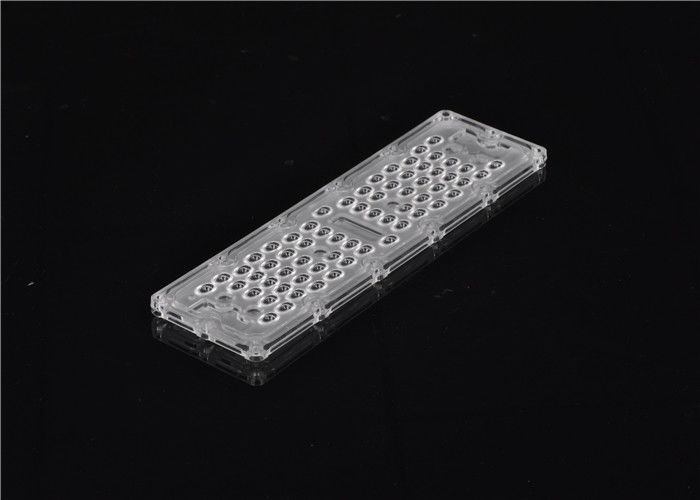

64 In 1 Osram 3030 PC LED Floodlight Lens Array With 30° Beam Angle
LED Optics
Optics allow you to control your illumination pattern, either diffusing it or focusing it as your application requires. Secondary LED Optics provide a standard LED with collimation for spot, medium, wide and elliptical illumination patterns.
Part Number |
JY-BAA6430P-23670 |
Beam angle |
30 Degree |
Dimension |
L236*W70 |
Lens Material |
PC |
Transmittance |
93% |
Working Temperature |
Lens ≤ 90℃ |
Application |
LED Floodlight |
Delivery and Shipping:
Trade Terms | EXW, FOB, CNF, CIF |
Payment Terms | T/T , PayPal , Western Union, Moneygram |
Lead Time | 1-2 working days for samples order, 5-7 working days for bulk order |
Shipment Terms | By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc |
1, The lens itself clips securely into the holder, but the holder does need to be externally adhered. In
the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.
Triple LED stars are built with three holes in the star board for the legs of the optic.
2, Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.
The lens itself clips securely into the holder, but the holder does need to be externally adhered. In
the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.
LED lens Drawing:
IES:
