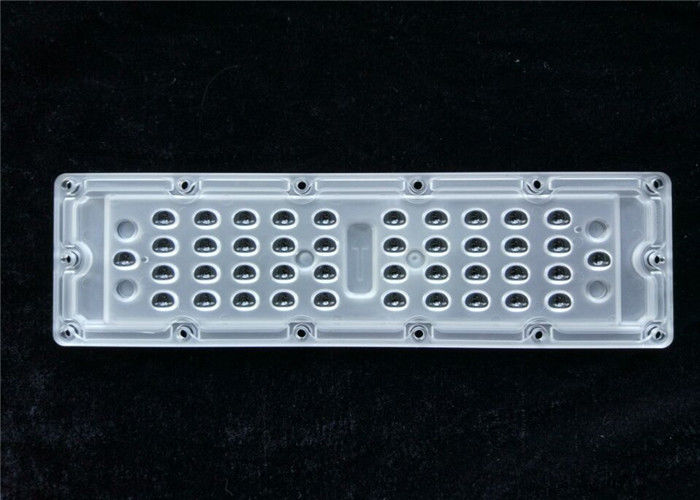

Osram 3030 Chips SMD LED Lens , Optical LED Lamp Lens TYPE2-S For Street Lighting

Osram 3030 Chips SMD LED Lens , Optical LED Lamp Lens TYPE2-S For Street Lighting

high power led lens

led focusing lens

Place of Origin:

Zhejiang, China

Brand Name:

Spark

Certification:

CE, SGS, ROHS

Model Number:

JY-BAA4280150P-23670

Contact Us
Request A Quote
Product Details
Material:
PC
Beam Angle:
80*150 Degree
Efficiency:
93%
Dimension:
L236*W70
LED Chips:
Osram 3030
Application:
LED Street Light
Highlight:

high power led lens

,

led focusing lens

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
In Carton Box
Delivery Time
2-5 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
100000pcs/per week
Product Description

42 In 1 SMD 3030 Optical LED Street Light Lens TYPE2-S For Street Lamp



LENSES:
LED lenses come in various shapes and sizes, for example round, square and hexagonal. Common

lens materials include plastic and silicone. Therefore some are rigid and some are flexible.


1, Lenses are designed for use with single or multiple LEDs. This includes LED modules or strips.
They sit over the LEDs to create the desired lighting effect.



2, Various properties of LED lenses enable precise control over the beams of light. LED lenses can

also offer a nice aesthetic appearance by masking the LED components within.





Part Number

JY-BAA4280150P-23670

Beam angle

80*150 Degree

Dimension

L236*W70

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Street Light



Delivery and Shipping:



Trade Terms EXW, FOB, CNF, CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





  • The lens itself clips securely into the holder, but the holder does need to be externally adhered.
  • Triple LED stars are built with three holes in the star board for the legs of the optic.
  • Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.
  • In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.





LED lens Drawing:







Osram 3030 Chips SMD LED Lens , Optical LED Lamp Lens TYPE2-S For Street Lighting 0







IES:







Osram 3030 Chips SMD LED Lens , Optical LED Lamp Lens TYPE2-S For Street Lighting 1









Gasket & PCB Board's Size:







Osram 3030 Chips SMD LED Lens , Optical LED Lamp Lens TYPE2-S For Street Lighting 2











Osram 3030 Chips SMD LED Lens , Optical LED Lamp Lens TYPE2-S For Street Lighting 3
