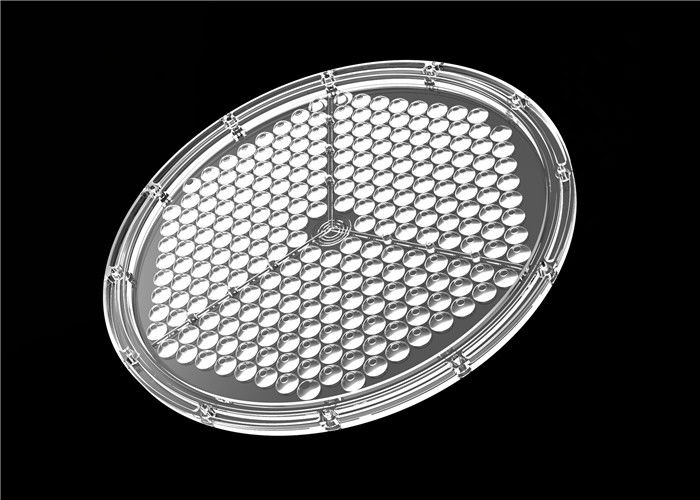

Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps

Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps

    • Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps
    • Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps
  • Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Spark
    Certification: CE, SGS, ROHS
    Model Number: JY-BAA23490P-26410

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: In Carton Box
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100000pcs/per week
    Contact Now
    Detailed Product Description
    Material: PMMA Beam Angle: 90 Degree
    Efficiency: 93% Dimension: D264*H9.6
    LED Chips: 3030 Accessory: AL PCB+ Silicone Gasket
    Application: LED High Bay Light

    Round Module Optical Lenses SMD 3030 LED Lens 90 Degree For Outdoor Lamps



    How do I get the tightest spot pattern possible?



    (A) In general, when talking about lens optics the larger the optic the easier it is to collimate light into a

    tighter pattern.



    (B) Another consideration when trying to achieve a tight spot is the size of the LED die. The smaller the size of the die the tighter the spot.



    (C) For example, to get the tightest spot with our LEDs you would want to use the Cree XP-E LED (smallest size die) and the 26mm plain tight lens (largest diameter optic).





    Part Number

    JY-BAA23490P-26410

    Beam angle

    90 Degree

    Dimension

    D264*H9.6

    Lens Material

    PMMA

    Transmittance

    93%

    Working Temperature

    Lens ≤ 90℃

    Application

    LED highbay light



    Delivery and Shipping:



    Trade Terms EXW , FOB , CNF , CIF
    Payment Terms T/T , PayPal , Western Union, Moneygram
    Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
    Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





    LED Optics:



    1, Optics allow you to control your illumination pattern, either diffusing it or focusing it as your application requires.



    2, Secondary LED Optics provide a standard LED with collimation for spot, medium, wide and elliptical illumination patterns.



    3, Lenses are made from transparent materials such as glass, polymers etc which are ground and polished to a desired shape.







    LED lens' Drawing:





    Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps









    Gasket Size:





    Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps







    IES:





    Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps









    Round Module SMD LED Lens Long Lifetime ROHS Certificated For Outdoor Lamps
