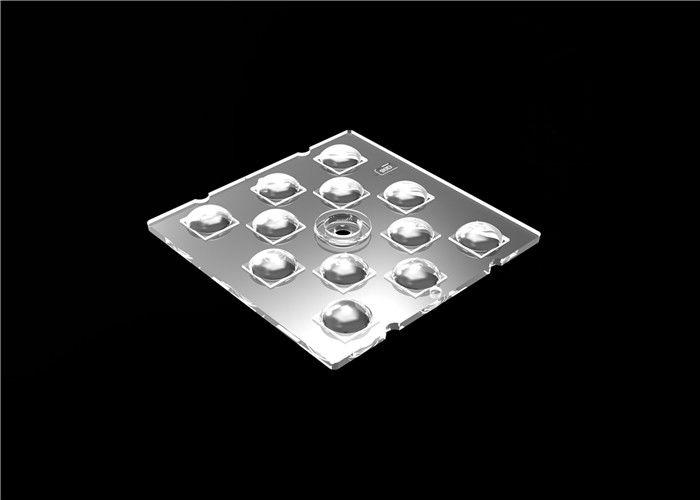

Transparent Material PMMA LED Lens , Square LED Lens L50*W50mm Dimension

Samsung LED PMMA Lenses LED High Bay Light Fixtures With 90 Degree

LED lenses come in various shapes and sizes, for example round, square and hexagonal.

Common lens materials include plastic and silicone. Therefore some are rigid and some are flexible.

Spark offers a wide variety of optical and reflector solutions in various types of lenses;

single-LED optics, multi-LED optics, reflectors or specialty optics.

1. A Lens is a Transmissive Optical Device that affects the focus of a light beam through refraction.
2. A simple Lens consists of a single piece of material, while a compound Lens consists of several simple lenses (elements), usually along a common axis.
3. Lenses are made from transparent materials such as glass, polymers etc which are ground and polished to a desired shape. A Lens can focus light to form an image.

Delivery and Shipping:

Optics allow you to control your illumination pattern, either diffusing it or focusing it as your application requires. Secondary LED Optics provide a standard LED with collimation for spot, medium, wide and elliptical illumination patterns.

LED optic and holder kits contain both the LED reflector/lens plus a holder. These are called lens assemblies or reflector kits.

LED lens Drawing:

Size of PCB Board:
