High Power SMD LED Lens Lumen Chips L50*W50mm Dimension With Silicone Gasket

High Power SMD LED Lens Lumen Chips L50*W50mm Dimension With Silicone Gasket

dome lens smd led

rebel led optics

Place of Origin:

Zhejiang, China

Brand Name:

Spark

Certification:

CE, SGS, ROHS

Model Number:

JY-BAA1260P-5050

Contact Us
Request A Quote
Product Details
Material:
PMMA
Beam Angle:
60 Degree
Efficiency:
93%
Dimension:
L50*W50
LED Chips:
Lumen
Accessory:
PCB Board + Silicone Gasket
Highlight:

dome lens smd led

,

rebel led optics

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
In Carton Box
Delivery Time
2-5 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
100000pcs/per week
Product Description

High Power SMD 3030 LED Light Lens 60 Degree With Silicone Gasket



Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

The lens itself clips securely into the holder, but the holder does need to be externally adhered.

In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.



  1. Industry-leading thermal management utilizing technology
  2. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  3. The LED retrofit kits contain no any mercury or lead.
  4. Does not produce UV rays that harm people’s eyes.
  5. Directional light means no light pollution, dark sky compliance.
  6. Triple LED stars are built with three holes in the star board for the legs of the optic.



Part Number

JY-BAA1260P-5050

Beam angle

60 Degree

Dimension

L50*W50

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

Flood Lighting



Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





There are a wide array of standard optics available to order with many being stocked items in the UK and USA. Sizes available from 10mm – 60mm with a full range of beam angels and surface finishes suitable for any application.



The large product range includes specialised optics with ultra narrow, ultra wide, asymmetric and freeform light distribution. We have small form factor arrays, cluster holders, linear strip and IP rated optics – all of which are optimised for a wide range of LEDs.





IES:

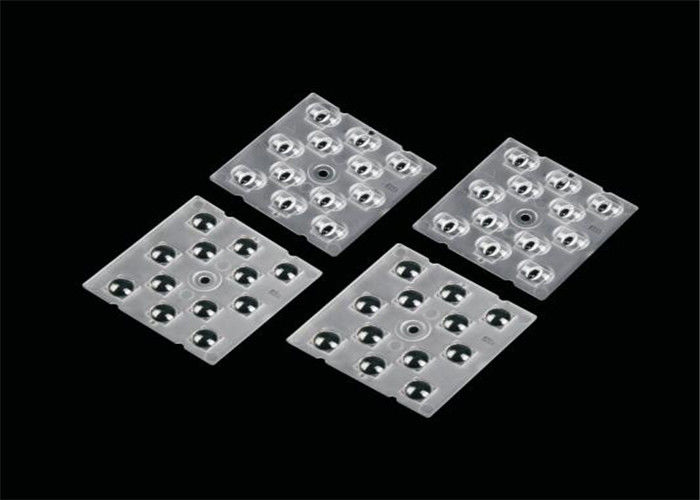

High Power SMD LED Lens Lumen Chips L50*W50mm Dimension With Silicone Gasket 0











High Power SMD LED Lens Lumen Chips L50*W50mm Dimension With Silicone Gasket 1
