Product Details
Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAA18090P-23510
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Material: |
PC |
Beam Angle: |
90 Degree |
Efficiency: |
93% |
Dimension: |
D235*H9.4mm |
LED Chips: |
Nichia |
Application: |
LED High Bay Light |
Material: |
PC |
Beam Angle: |
90 Degree |
Efficiency: |
93% |
Dimension: |
D235*H9.4mm |
LED Chips: |
Nichia |
Application: |
LED High Bay Light |

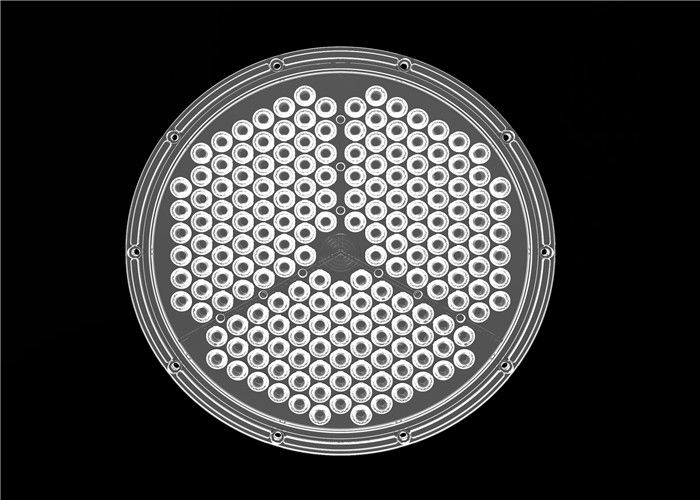

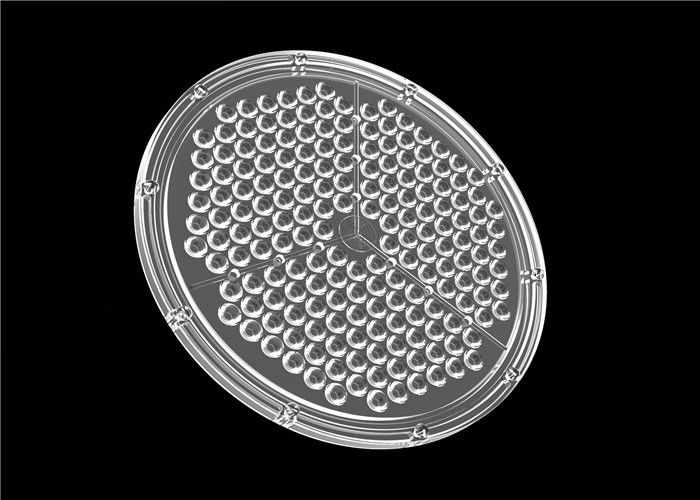

Power 180 in 1 UFO LED High Bay Light Lens For Factory / Outdoor Lighting
LED applications that require more focused light often use a secondary optic that is placed over
the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.
|
Part Number |
JY-BAA18090P-23510 |
|
Beam angle |
90 Degree |
|
Dimension |
D235*H9.4mm |
|
Lens Material |
PC |
|
Transmittance |
93% |
|
Working Temperature |
Lens ≤ 90℃ |
|
Application |
LED Highbay Light |
Delivery and Shipping:
| Trade Terms | EXW , FOB , CNF , CIF |
| Payment Terms | T/T , PayPal , Western Union, Moneygram |
| Lead Time | 1-2 working days for samples order, 5-7 working days for bulk order |
| Shipment Terms | By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc |
Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing by
the total amount of light without an optic directly at the LED source.
The simple answer is yes. Carclo optics uses a technology called total internal reflection (TIR), so
there is light lose during the collimation process. Another consideration when trying to achieve a tight
spot is the size of the LED die. The smaller the size of the die the tighter the spot.
LED lens Drawing:
PCB Board Size:
Gasket Size:
