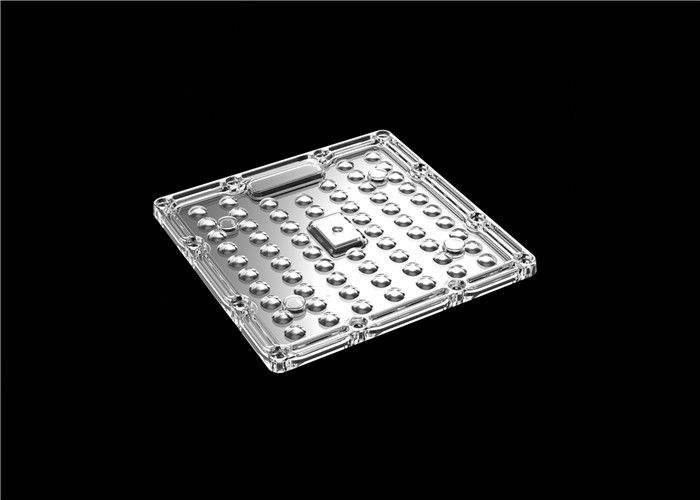

Square Shaped Osram 3030 LED Lens , LED Bulb Lens With AL PCB Mounting LEDs

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA6490P-130130

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
High Light:

led chip lens

,

led flood light lens

Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
L130*W130
LED Chips:
Osram 3030
Accessory:
PCB Board + Silicone Gasket
Application:
LED Tunnel Light
Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
L130*W130
LED Chips:
Osram 3030
Accessory:
PCB Board + Silicone Gasket
Application:
LED Tunnel Light
Description
Square Shaped Osram 3030 LED Lens , LED Bulb Lens With AL PCB Mounting LEDs

Osram 3030 Led Lens Square LED Tunnel Light Lens With AL PCB Mounting Leds



Do I lose brightness when using optics?

Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing

by the total amount of light without an optic directly at the LED source. The simple answer is yes.



Carclo optics uses a technology called total internal reflection (TIR), so there is light lose during the collimation process.





Part Number

JY-BAA6490P-130130

Beam angle

90 Degree

Dimension

L130*W130

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Tunnel Lights



Delivery and Shipping:



Trade Terms EXW, FOB, CNF, CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc



  1. LED lenses come in various shapes and sizes, for example round, square and hexagonal. Common lens materials include plastic and silicone. Therefore some are rigid and some are flexible.
  2. Lenses are designed for use with single or multiple LEDs. This includes LED modules or strips.
  3. They sit over the LEDs to create the desired lighting effect. Various properties of LED lenses enable precise control over the beams of light. LED lenses can also offer a nice aesthetic appearance by masking the LED components within.





LED lens Drawing:





Square Shaped Osram 3030 LED Lens , LED Bulb Lens With AL PCB Mounting LEDs 0

Square Shaped Osram 3030 LED Lens , LED Bulb Lens With AL PCB Mounting LEDs 1











IES:





Square Shaped Osram 3030 LED Lens , LED Bulb Lens With AL PCB Mounting LEDs 2













Square Shaped Osram 3030 LED Lens , LED Bulb Lens With AL PCB Mounting LEDs 3
