Product Details
Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAA6490120P-23670
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Material: |
PMMA / PC |
Beam Angle: |
90*120 Degree |
Efficiency: |
93% |
Dimension: |
L236*W70 |
LED Chips: |
SMD 3030 |
Application: |
LED Tunnel Lighting |
Accessories: |
PCB Board + Silicone Gasket + Heat Sink |
Material: |
PMMA / PC |
Beam Angle: |
90*120 Degree |
Efficiency: |
93% |
Dimension: |
L236*W70 |
LED Chips: |
SMD 3030 |
Application: |
LED Tunnel Lighting |
Accessories: |
PCB Board + Silicone Gasket + Heat Sink |

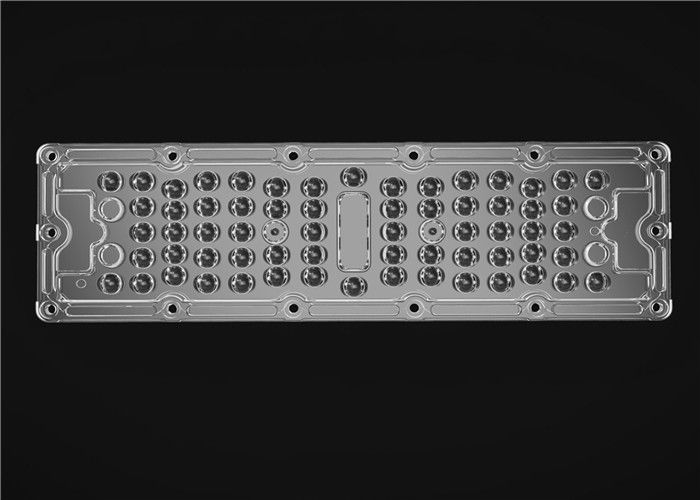

Symmetric 64 In 1 LED Optics Lenses Led Light Lens For Tunnel Lighting
How do I get the tightest spot pattern possible?
In general, when talking about lens optics the larger the optic the easier it is to collimate light into a
tighter pattern. Another consideration when trying to achieve a tight spot is the size of the LED die.
The smaller the size of the die the tighter the spot. For example, to get the tightest spot with our LEDs
you would want to use the Cree XP-E LED (smallest size die) and the 26mm plain tight lens (largest diameter optic).
Part Number |
JY-BAA6490120P-23670 |
Beam angle |
90*120 Degree |
Dimension |
L236*W70 |
Lens Material |
PMMA |
Transmittance |
93% |
Working Temperature |
Lens ≤ 90℃ |
Application |
LED Tunnel Lighting |
Delivery and Shipping:
Trade Terms | EXW, FOB, CNF, CIF |
Payment Terms | T/T , PayPal , Western Union, Moneygram |
Lead Time | 1-2 working days for samples order, 5-7 working days for bulk order |
Shipment Terms | By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc |
LED lens Drawing:
IES:
Gasket's Size:
