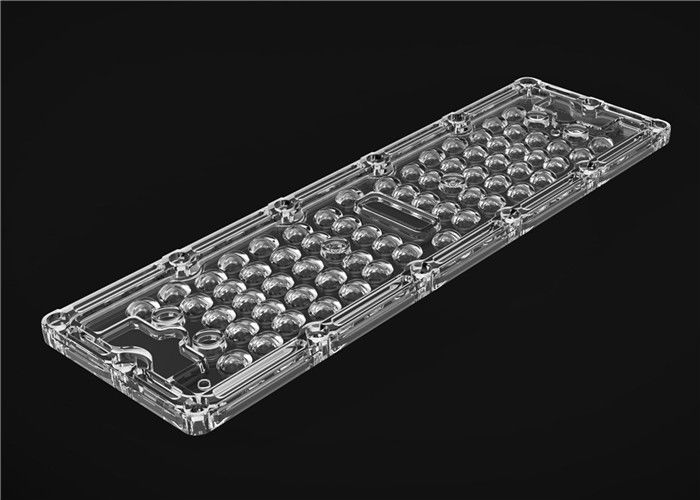

Nichia 3030 SMD LED Light Lens ROHS Certificated LED Module With Lens

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA6490120P-23670

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
Highlight:

led flood light lens

,

10 degree led lens

Material:
PMMA / PC
Beam Angle:
90*120 Degree
Efficiency:
93%
Dimension:
L236*W70
LED Chips:
Nichia 3030
Application:
LED Tunnel Light
Accessories:
PCB Board + Silicone Gasket + Heat Sink
Material:
PMMA / PC
Beam Angle:
90*120 Degree
Efficiency:
93%
Dimension:
L236*W70
LED Chips:
Nichia 3030
Application:
LED Tunnel Light
Accessories:
PCB Board + Silicone Gasket + Heat Sink
Description
Nichia 3030 SMD LED Light Lens ROHS Certificated LED Module With Lens

Nichia 3030 SMD LED Tunnel Light Lens Power Led Module With Lens



Application:

Led Optical Lenses used in the street light, high way led lamp, tunnel lamp, square lamp, road lamp,

city lighting, parking spot lamp, track lighting fixtures, scenery area, retail lighting and other applications where high luminous flux is desired.



Do I lose brightness when using optics?

Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing by

the total amount of light without an optic directly at the LED source.



The simple answer is yes. Carclo optics uses a technology called total internal reflection (TIR), so there

is light lose during the collimation process.





Part Number

JY-BAA6490120P-23670

Beam angle

90*120 Degree

Dimension

L236*W70

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Tunnel Lighting



Delivery and Shipping:



Trade Terms EXW, FOB, CNF, CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





1, LED reflectors sit over the LED to alter the beam of light. They are an affordable and easy-to-use solution for your lighting fitment. However, they do not offer as much control as LED lenses.


2, Reflectors are made using plastic and can be metal coated.LED reflectors are smooth or multifaceted inside and come in various different shapes. This enables them to create a range of lighting effects.







LED lens Drawing:





Nichia 3030 SMD LED Light Lens ROHS Certificated LED Module With Lens 0







IES:







Nichia 3030 SMD LED Light Lens ROHS Certificated LED Module With Lens 1







Heat Sink:







Nichia 3030 SMD LED Light Lens ROHS Certificated LED Module With Lens 2











Nichia 3030 SMD LED Light Lens ROHS Certificated LED Module With Lens 3
