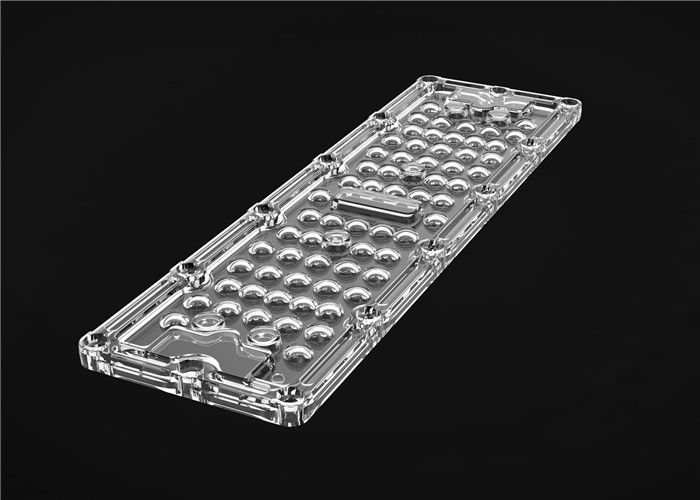

PMMA Material Optics RGB LED Lens With 90° Beam Angle For LED Tunnel Lamp

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA6490P-23570

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
Highlight:

led chip lens

,

led flood light lens

Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
L236*W70
LED Chips:
Edison 3030
Application:
LED High Bay Light / Tunnel Lamp
Accessories:
PCB Board + Silicone Gasket + Heat Sink
Material:
PMMA
Beam Angle:
90 Degree
Efficiency:
93%
Dimension:
L236*W70
LED Chips:
Edison 3030
Application:
LED High Bay Light / Tunnel Lamp
Accessories:
PCB Board + Silicone Gasket + Heat Sink
Description
PMMA Material Optics RGB LED Lens With 90° Beam Angle For LED Tunnel Lamp

LED Optics Lenses LED Light Lens With 90° Beam Angle For LED Tunnel Lamp



Beam Angle:
1, This describes the angle over which the light is distributed. Lenses and reflectors can be used to

help create your desired beam angle.


2, Narrow beam angles, for example 40°, have a tight beam of light and are ideal for spotlights. Wide beam angles around 120° have a larger coverage for wide area lighting.



Clear/Diffused:
Clear lenses provide a crisp-edged beam of light. A diffused lens has a softer edge. Diffusion can also offer a more uniform light output when multiple LEDs are used.





Part Number

JY-BAA6490P-23570

Beam angle

90 Degree

Dimension

L236*W70

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED High Bay Light / Tunnel Lamp



Delivery and Shipping:



Trade Terms EXW, FOB, CNF, CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





Number of LEDs per Lens:

  • This refers to the number of LEDs that the lens is designed for. They can be for single LEDs or arrays of LEDs. Multiple LED lenses are ideal for wide area lighting, for example street lighting.
  • Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible LED options.
  • Some manufacturers pre-mount LEDs onto a board ready for the lens/reflector to sit over, saving you having to solder and line the LEDs up accurately.





LED lens Drawing:





PMMA Material Optics RGB LED Lens With 90° Beam Angle For LED Tunnel Lamp 0







IES:







PMMA Material Optics RGB LED Lens With 90° Beam Angle For LED Tunnel Lamp 1









PCB Board's Size:







PMMA Material Optics RGB LED Lens With 90° Beam Angle For LED Tunnel Lamp 2











PMMA Material Optics RGB LED Lens With 90° Beam Angle For LED Tunnel Lamp 3
