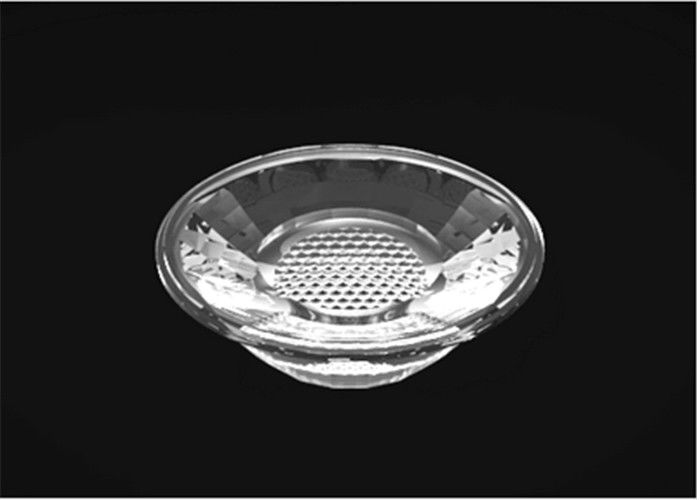

Name: Super Bright Optical COB LED Lens 60 Degree LED Down Light With Reflector Kits
Brand: Ningbo Spark Optics Technology Co., LTD
SKU: JY-AAC60P-4214
Availability: InStock

Home > products > COB LED Lens >

Super Bright Optical COB LED Lens 60 Degree LED Down Light With Reflector Kits

led bulb lens

narrow beam led lens

Place of Origin:

Zhejiang, China

Brand Name:

Spark

Certification:

CE, SGS, ROHS

Model Number:

JY-AAC60P-4214

Request A Quote

Super Bright Optical COB LED Lens 60 Degree LED Down Light With Reflector Kits

Product Details

Material:

PMMA

Dimension:

D41.6*H14 Mm

Efficiency:

93%

LED Chips:

CREE 1507 / 1512

Accessory:

Holder

Application:

LED Down Light

Beam Angle:

60 Degree

Highlight:

led bulb lens

narrow beam led lens

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

Negotiable

Packaging Details

In Carton Box

Delivery Time

2-5 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

100000pcs/per week

CREE 1507 / 1512 LED Chip Lens 24 Degree Beam Angle For LED Ceiling Light

Get Best Price

Clear Glass COB LED Lens High Transmittance 93% For 10W - 200W LED Lights

Get Best Price

PMMA Material Narrow Beam LED Lens , 24 Degree LED Lamp Lens For LED Illumination

Get Best Price

42mm Diameter COB LED Lens Ceiling Light Lenses With CREE 1507 / 1512

Get Best Price

86-574-88213530

Contact Now

Product Description

42mm Optical LED COB Lens 60 Degree For LED Down Light With Holder

REFLECTORS:
LED reflectors sit over the LED to alter the beam of light. They are an affordable and easy-to-use

solution for your lighting fitment. However, they do not offer as much control as LED lenses.

1, Reflectors are made using plastic and can be metal coated.LED reflectors are smooth or

multifaceted inside and come in various different shapes. This enables them to create a range of

lighting effects. Some reflectors contain a sub-lens, for additional diffusion or control of the light.

2, Alternatively these kits may include an LED holder which holds the LED in place. The lens/reflector

then simply twists on top.

Part Number	JY-AAC60P-4214
Beam angle	60 Degree
Dimension	D41.6*H14 mm
Lens Material	PMMA
Transmittance	93%
Working Temperature	Lens ≤ 90℃
Application	LED Down Light

***LED optic and holder kits contain both the LED reflector/lens plus a holder. These are called lens assemblies or reflector kits.

***Lens holders provide a mechanical cut-off shield and can also be used to enhance performance.

They are also much easier to install than a stand-alone lens.

Holder's Size:

Super Bright Optical COB LED Lens 60 Degree LED Down Light With Reflector Kits 0

Super Bright Optical COB LED Lens 60 Degree LED Down Light With Reflector Kits 1
