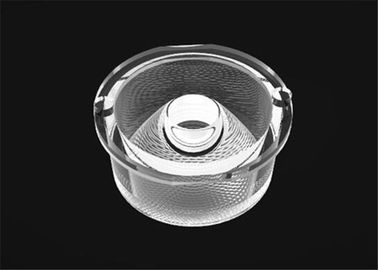

15*45° Narrow Beam LED Lens Transparent Single Lens For LED Wall Washer

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: JY-BAA011545T-2012

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
High Light:

led collimator lens

,

silicone led lens

Material:
PMMA
Beam Angle:
15*45 Degree
Efficiency:
93%
Dimension:
D22*H11.7mm
LED Chips:
3030 / 3535
Application:
Led Wall Washer
Material:
PMMA
Beam Angle:
15*45 Degree
Efficiency:
93%
Dimension:
D22*H11.7mm
LED Chips:
3030 / 3535
Application:
Led Wall Washer
Description
15*45° Narrow Beam LED Lens Transparent Single Lens For LED Wall Washer

15*45° Narrow Beam Waterproof PMMA LED Single Lens For LED Wall Washer



Led Optical Lenses used in the street light, high way led lamp, tunnel lamp, square lamp, road lamp,

city lighting, parking spot lamp, track lighting fixtures, scenery area, retail lighting and other applications where high luminous flux is desired.

  • Some optics come supplied with an adhesive tape backing ready to be stuck down.
  • Other optics will simply twist or snap onto an LED holder.
  • Some may need attaching with screws or specific clips from the manufacturer.
  • Alternatively a glue is used to attach the optic. Please note that certain glues are not compatible, check the manufacturer data for more information.





Part Number

JY-BAA011545T-2012

Beam angle

15*45 Degree

Dimension

D22*H11.7mm

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

Wall Washer Light





Delivery and Shipping:





Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





1, Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing

by the total amount of light without an optic directly at the LED source.



2, The simple answer is yes. Carclo optics uses a technology called total internal reflection (TIR), so

there is light lose during the collimation process.







LED lens Drawing:





15*45° Narrow Beam LED Lens Transparent Single Lens For LED Wall Washer 0







IES:







15*45° Narrow Beam LED Lens Transparent Single Lens For LED Wall Washer 1











15*45° Narrow Beam LED Lens Transparent Single Lens For LED Wall Washer 2
