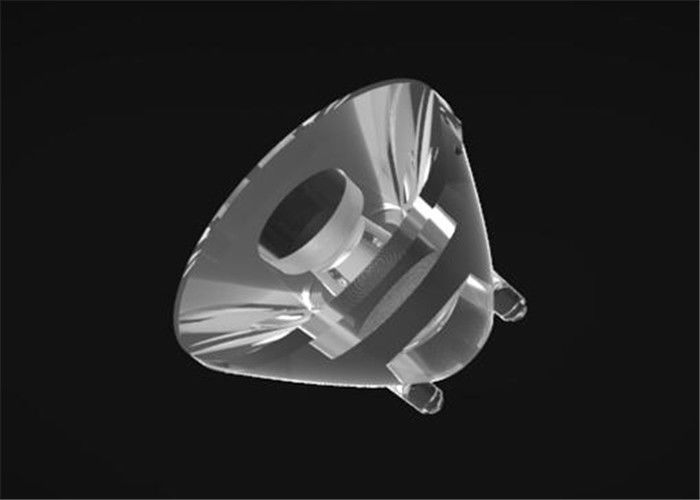

Name: 4° Single PMMA LED Lens High Luminous Flux For LED Flood Lamp / Light
Brand: Ningbo Spark Optics Technology Co., LTD
SKU: JY-AAA0104P-3522
Availability: InStock

Home > products > PMMA LED Lens >

4° Single PMMA LED Lens High Luminous Flux For LED Flood Lamp / Light

20mm led lens

silicone led lens

Place of Origin:

Zhejiang, China

Brand Name:

Spark

Certification:

CE, SGS, ROHS

Model Number:

JY-AAA0104P-3522

Request A Quote

4° Single PMMA LED Lens High Luminous Flux For LED Flood Lamp / Light

Product Details

Material:

PMMA

Beam Angle:

4 Degree

Efficiency:

93%

Dimension:

D35*H22.6 Mm

LED Chips:

Cree XP-E

Application:

Led Flood Lamp / Light

Highlight:

20mm led lens

silicone led lens

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

Negotiable

Packaging Details

In Carton Box

Delivery Time

2-5 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

100000pcs/per week

3 Degree TIR NARROW LENS; 35mm Dia. Flashlight 3535 LED Lens

Get Best Price

154 173 252Mm Tunnel Lighting 10/30/60 Degree Led Optical Pmma Lens

Get Best Price

38 Degree Multiple Degree Plastic Optics Pmma Lens Optical Led Lenses

Get Best Price

LED Extrusion Profile Plastic PMMA Rectangular Linear Lens

Get Best Price

86-574-88213530

Contact Now

Product Description

4° Single Lens 35mm Optical PMMA LED Lens For LED Flood Lamp / Light

LED applications that require more focused light often use a secondary optic that is placed over the

LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.

Carclo optics uses a technology called total internal reflection (TIR), so there is light lose during the collimation process.
Led Optical Lenses used in the street light, high way led lamp, tunnel lamp, square lamp, road lamp, city lighting, parking spot lamp, track lighting fixtures, scenery area, retail lighting and other applications where high luminous flux is desired.
The smaller the size of the die the tighter the spot. For example, to get the tightest spot with our LEDs you would want to use the Cree XP-E LED (smallest size die) and the 26mm plain tight lens (largest diameter optic).

Part Number	JY-AAA0104P-3522
Beam angle	4 Degree
Dimension	D35*H22.6 mm
Lens Material	PMMA
Transmittance	93%
Working Temperature	Lens ≤ 90℃
Application	LED Flood Lamp / Light

Delivery and Shipping:

Trade Terms	EXW , FOB , CNF , CIF
Payment Terms	T/T , PayPal , Western Union, Moneygram
Lead Time	1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms	By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

LED lenses come in various shapes and sizes, for example round, square and hexagonal. Common

lens materials include plastic and silicone. Therefore some are rigid and some are flexible.

Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

The lens itself clips securely into the holder, but the holder does need to be externally adhered.

LED lens Drawing:

4° Single PMMA LED Lens High Luminous Flux For LED Flood Lamp / Light 0

IES:

4° Single PMMA LED Lens High Luminous Flux For LED Flood Lamp / Light 1

4° Single PMMA LED Lens High Luminous Flux For LED Flood Lamp / Light 2
