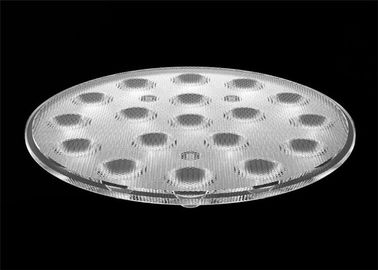

3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights

3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights

  • 3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights
  • 3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights
3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights
Product Details:
Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-BAA1824L-6707
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Contact Now
All Products
LED Optics Lenses (68)
LED Street Light Lens (16)
PMMA LED Lens (20)
LED Light Lens (22)
Multi LED Lens (20)
LED Lens Array (20)
COB LED Lens (15)
SMD LED Lens (15)
LED Street Light Components (16)
LED Street Light Retrofit Kits (16)
LED Street Light Module (16)
LED High Bay Light Fixtures (18)
Detailed Product Description
Material: PMMA Beam Angle: 24 Degree
Efficiency: 93% Dimension: 66.50x6.4mm
LED Chips: 3030 Application: Led Spotlights
High Light:

led collimator lens

,

20mm led lens

24 Degree 3030 LED 18 In 1 Optical PMMA LED Light Lens For Spotlights



How do secondary lens optics work?

LEDs generally emit light at a 120-degree viewing angle. LED applications that require more focused

light often use a secondary optic that is placed over the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.



  • Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.
  • The lens itself clips securely into the holder, but the holder does need to be externally adhered.
  • In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board.
  • Triple LED stars are built with three holes in the star board for the legs of the optic.





Part Number

JY-BAA1824L-6707

Beam angle

24 Degree

Dimension

66.50x6.4mm

Lens Material

PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

Led Spotlights





Delivery and Shipping:





Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc





Beam Angle:
This describes the angle over which the light is distributed. Lenses and reflectors can be used to help create your desired beam angle.


Narrow beam angles, for example 40°, have a tight beam of light and are ideal for spotlights. Wide

beam angles around 120° have a larger coverage for wide area lighting.







LED lens Drawing:







3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights 0











IES:







3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights 1











3030 Chips PMMA LED Lens 18 In 1 Narrow Beam Angles For LED Spotlights 2









Tag:

led collimator lens,

silicone led lens,

20mm led lens
