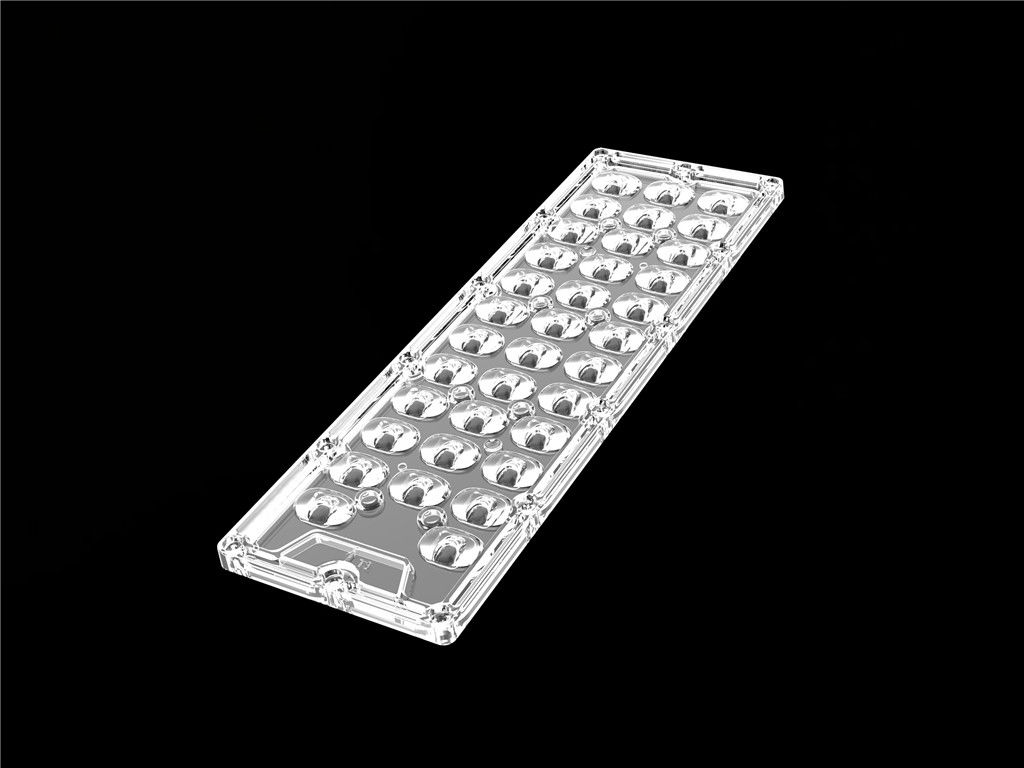

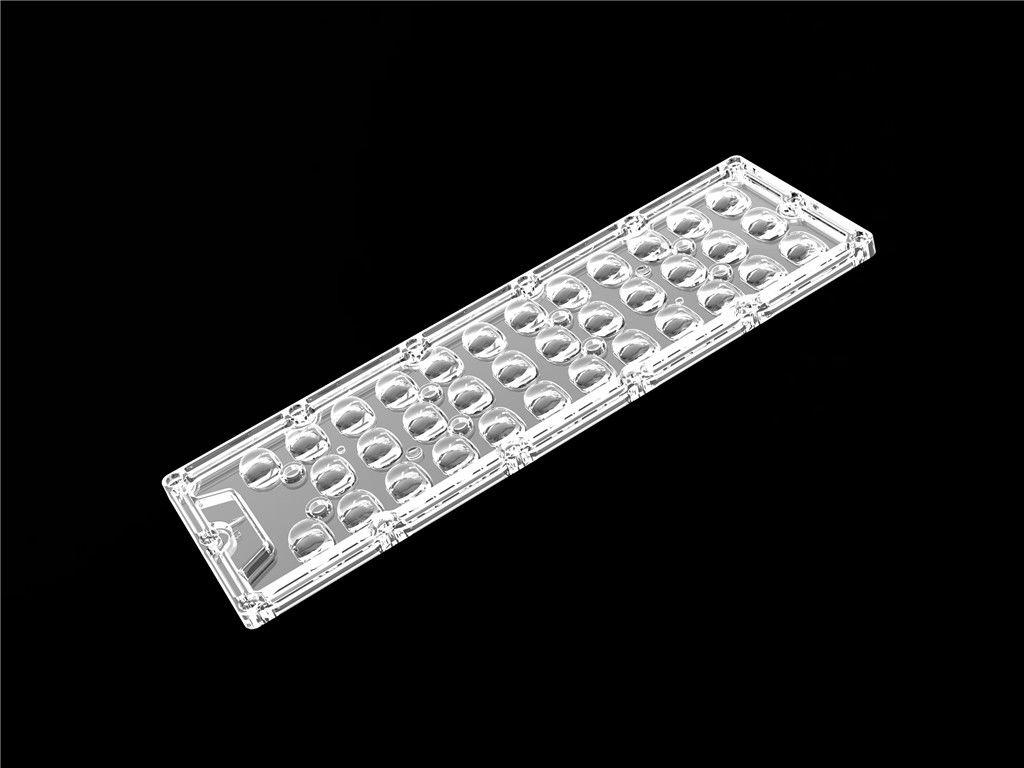

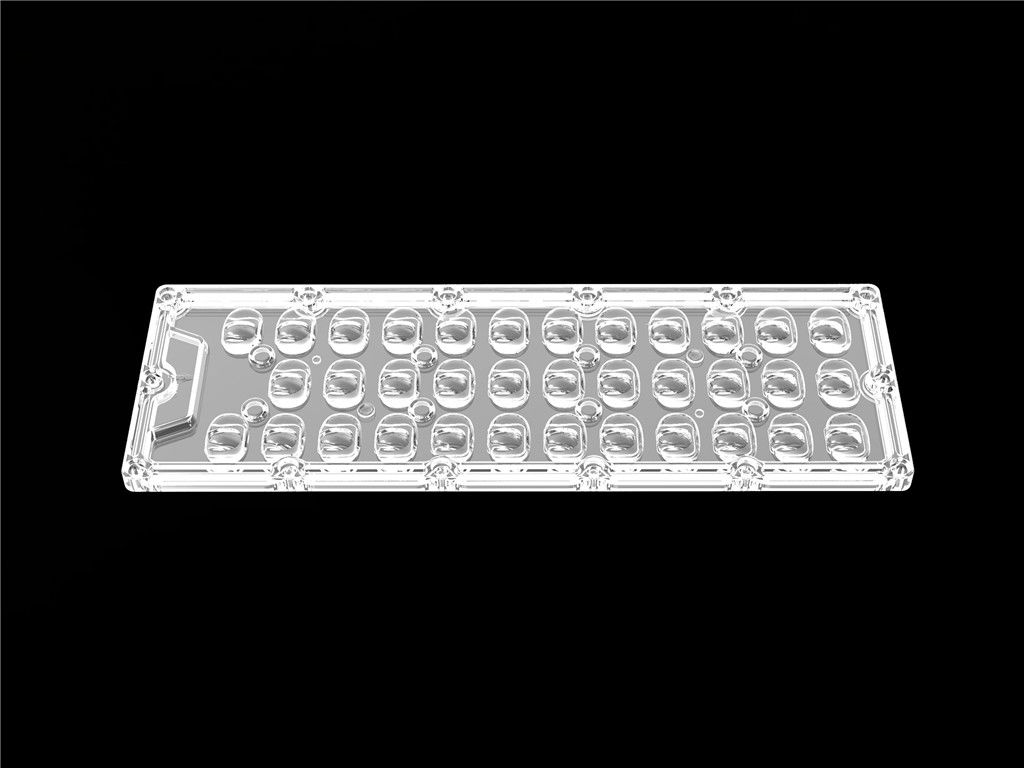

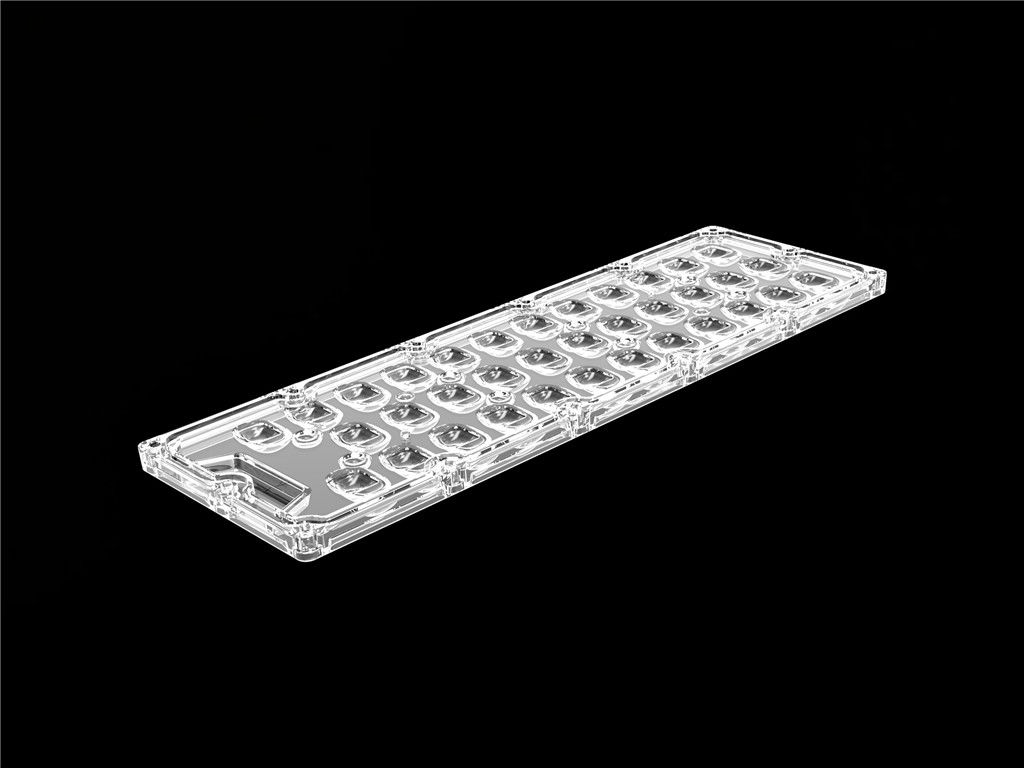

Name: 35 In 1 LED Optics Lenses With Industry Leading Thermal Management
Brand: Ningbo Spark Optics Technology Co., LTD
SKU: JY-BAA35TYPE3M-27593 LED Optics Lenses
Availability: InStock

Home > products > LED Optics Lenses >

35 In 1 LED Optics Lenses With Industry Leading Thermal Management

led spot lens

led lamp lens

Place of Origin:

Zhejiang, China

Brand Name:

Spark

Certification:

CE, SGS, ROHS

Model Number:

JY-BAA35TYPE3M-27593 LED Optics Lenses

Request A Quote

35 In 1 LED Optics Lenses With Industry Leading Thermal Management

Product Details

Name:

LED Optics Lenses

Beam Angle:

90 Degree

Efficiency:

93%

Dimension:

D235*H9.4mm

LED Chips:

Lumen

Application:

LED High Bay Light

Highlight:

led spot lens

led lamp lens

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

Negotiable

Packaging Details

In Carton Box

Delivery Time

2-5 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

100000pcs/per week

Transmittance 93% SMD LED Lens , LED Reflectors Optics Operating Temperature Below 90℃

Get Best Price

14 In 1 LED High Bay Light Fixtures Lenses For Outside Tunnel Lighting

Get Best Price

28 In 1 Optical High Power LED Lens 93% Efficiency With 5050 LED Chips

Get Best Price

Symmetrical 60 Degree LED High Bay Light Fixtures Lens 28 In 1 For Tunnel Lighting

Get Best Price

86-574-88213530

Contact Now

Product Description

35 In 1 LED Optics Lenses With Industry Leading Thermal Management

LED Optics Lenses Feature

It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology.
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
This LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.

LED Optics Lenses Introduction

1, LED applications that require more focused light often use a secondary optic that is placed over

the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.

2, Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.

The lens itself clips securely into the holder, but the holder does need to be externally adhered.

3, In the case of LED stars, optic holders have four legs that sit down into the grooves of the star

board. Triple LED stars are built with three holes in the star board for the legs of the optic.

Part Number	JY-BAA35TYPE3M-27593
Beam angle	90 Degree
Dimension	D235*H9.4mm
Lens Material	PC
Transmittance	93%
Working Temperature	Lens ≤ 90℃
Application	LED High Bay Light

Delivery and Shipping:

Trade Terms	EXW , FOB , CNF , CIF
Payment Terms	T/T , PayPal , Western Union, Moneygram
Lead Time	1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms	By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

LED Optics Lenses Drawing:

35 In 1 LED Optics Lenses With Industry Leading Thermal Management 0

LED Optics Lenses IES:

35 In 1 LED Optics Lenses With Industry Leading Thermal Management 1
