Product Details
Place of Origin: Zhejiang, China
Brand Name: Spark
Certification: CE, SGS, ROHS
Model Number: JY-AAD7615P-220220
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In Carton Box
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/per week
Name: |
LED Lens Reflector |
Beam Angle: |
90 Degree |
Efficiency: |
93% |
Dimension: |
D235*H9.4mm |
LED Chips: |
Lumen |
Application: |
LED High Bay Light |
Name: |
LED Lens Reflector |
Beam Angle: |
90 Degree |
Efficiency: |
93% |
Dimension: |
D235*H9.4mm |
LED Chips: |
Lumen |
Application: |
LED High Bay Light |

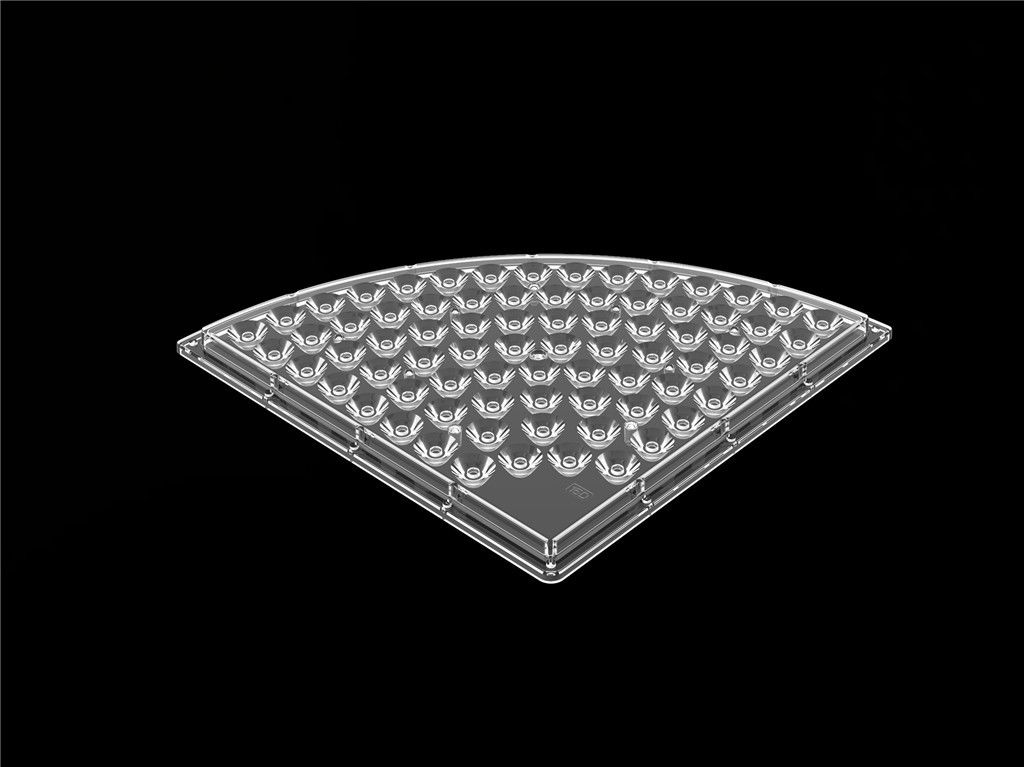

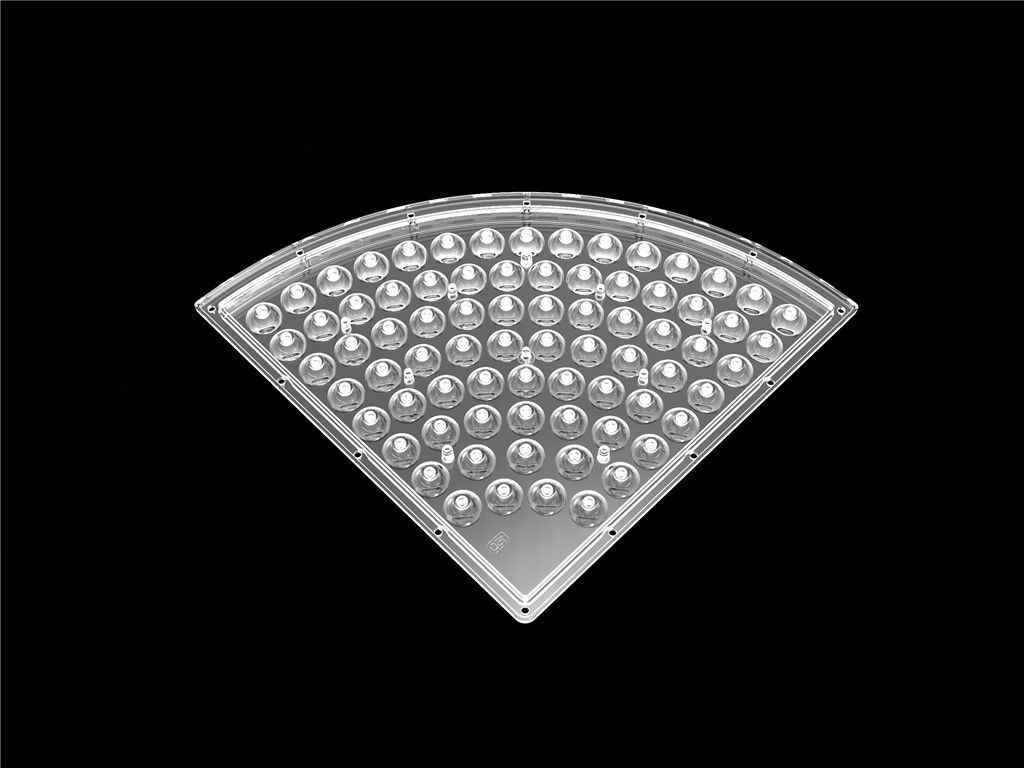

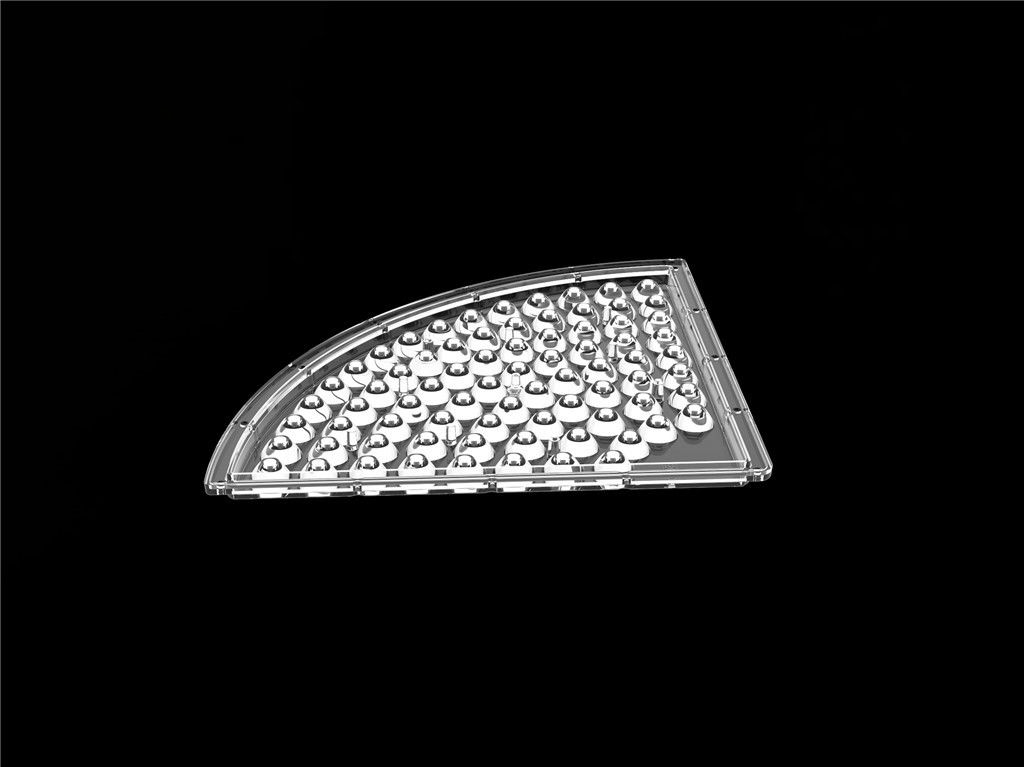

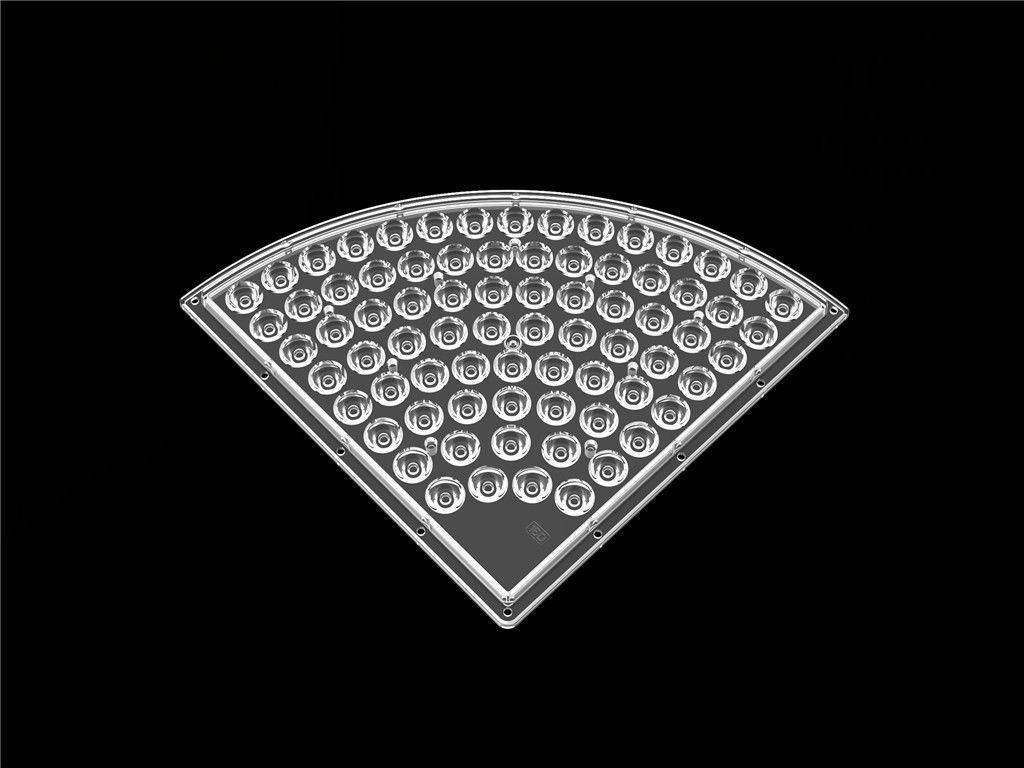

Special Shape LED Lens Reflector / LED Strip Lens D235*H9.4mm PC Material
LED Lens Reflector Introduction
1, LED applications that require more focused light often use a secondary optic that is placed over
the LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.
2, Most optics are cone shaped and need an optic holder to hold the lens in place over the LED.
The lens itself clips securely into the holder, but the holder does need to be externally adhered.
3, In the case of LED stars, optic holders have four legs that sit down into the grooves of the star
board. Triple LED stars are built with three holes in the star board for the legs of the optic.
LED Lens Reflector Parameter
Part Number |
JY-AAD7615P-220220 LED Lens Reflector |
Beam angle |
90 Degree |
Dimension |
D235*H9.4mm |
Lens Material |
PC |
Transmittance |
93% |
Working Temperature |
Lens ≤ 90℃ |
Application |
LED High Bay Light |
Delivery and Shipping:
Trade Terms | EXW , FOB , CNF , CIF |
Payment Terms | T/T , PayPal , Western Union, Moneygram |
Lead Time | 1-2 working days for samples order, 5-7 working days for bulk order |
Shipment Terms | By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc |
LED lens Drawing:
