XH56TYPE3-320124JY-BAA Four 3030 Integrated 56 In 1 Street Lamp Lens TP3

Product Details

Place of Origin: Zhejiang, China

Brand Name: Spark

Certification: CE, SGS, ROHS

Model Number: XH56TYPE3-320124JY-BAA

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable

Packaging Details: In Carton Box

Delivery Time: 2-5 work days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 100000pcs/per week

Get Best Price
Contact Now
Specifications
High Light:

ROHS Street Lamp Lens

,

3030 Street Lamp Lens

,

56 In 1 LED Optics Lenses

Material:
PC
Efficiency:
93%
Dimension:
L321*W125*H8.1
LED Chips:
SMD3030 /SMD5050
Beam Angle:
TYPE3 Degree
Working Temperature:
Lens ≤ 90℃
Material:
PC
Efficiency:
93%
Dimension:
L321*W125*H8.1
LED Chips:
SMD3030 /SMD5050
Beam Angle:
TYPE3 Degree
Working Temperature:
Lens ≤ 90℃
Description
XH56TYPE3-320124JY-BAA Four 3030 Integrated 56 In 1 Street Lamp Lens TP3

Four 3030 integrated -56 in 1 Street lamp lens -TP3



Product combined with Geometric Surface Design,High light efficiency;

On the basic character of Osram P8/3535/XPE/XPG series light, show the application of the Combination of optical and construction.



Part Number XH56TYPE3-320124JY-BAA
Beam angle TYPE3 Degree
Dimension L321*W125*H8.1
Lens Material PC
Transmittance 90%
Working Temperature Lens ≤ 90℃
Application

Street lamp lens





Delivery and Shipping:



Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc




  • It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  • Industry-leading thermal management utilizing technology.
  • Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  • The LED retrofit kits contain no any mercury or lead.

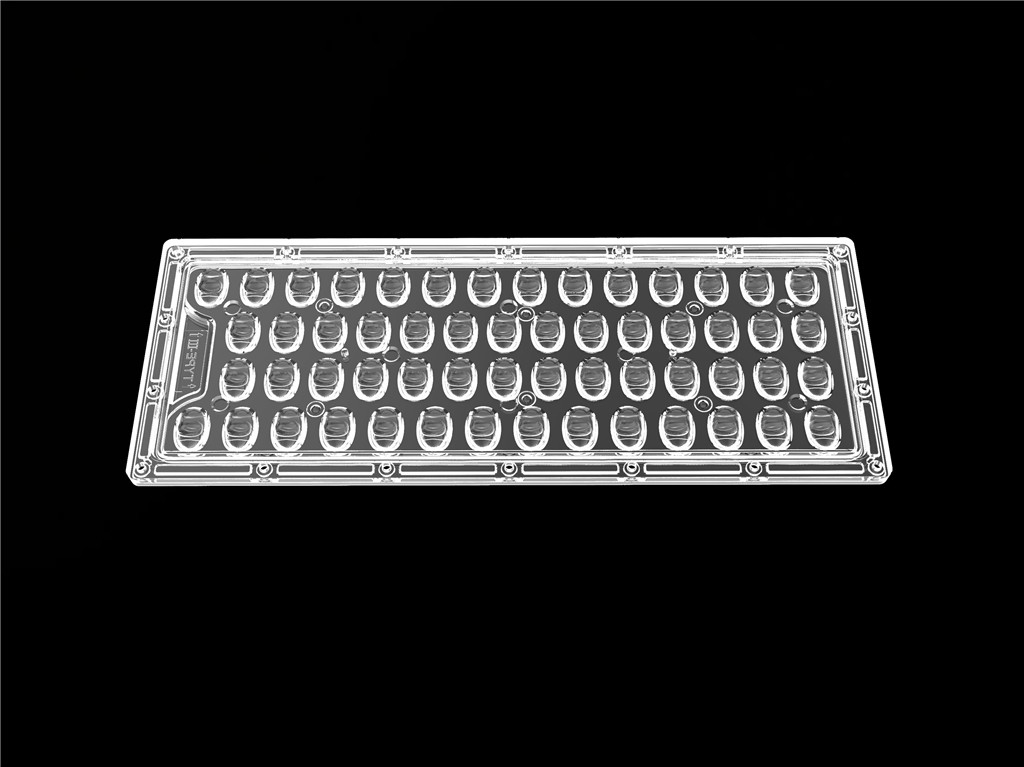

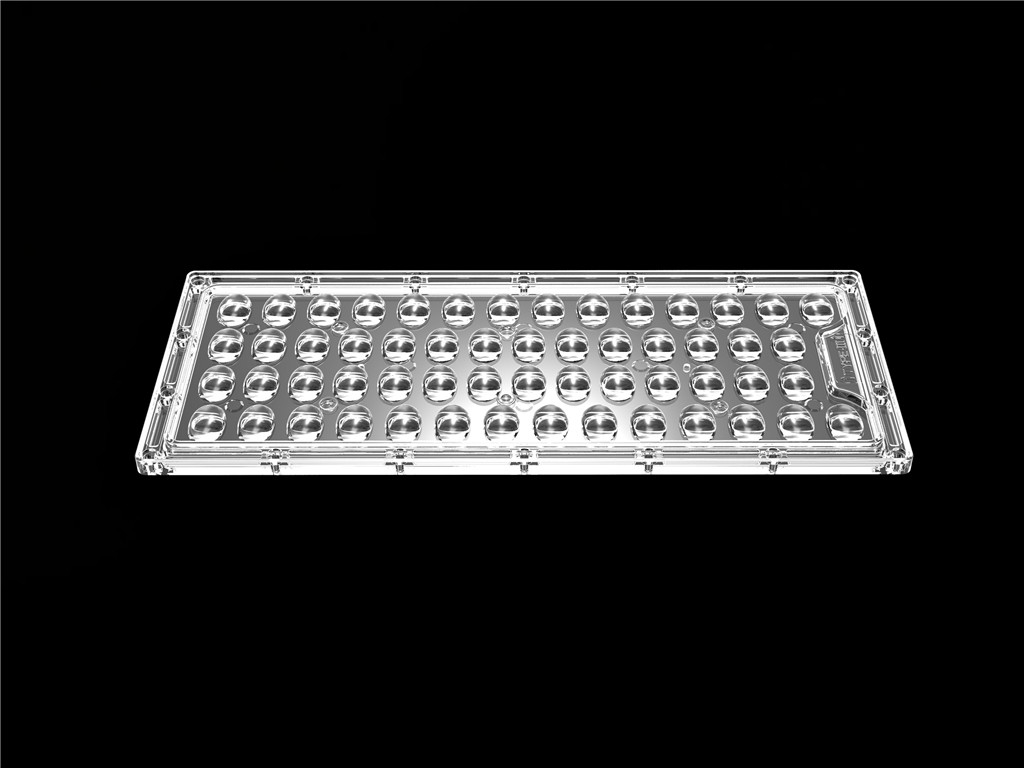

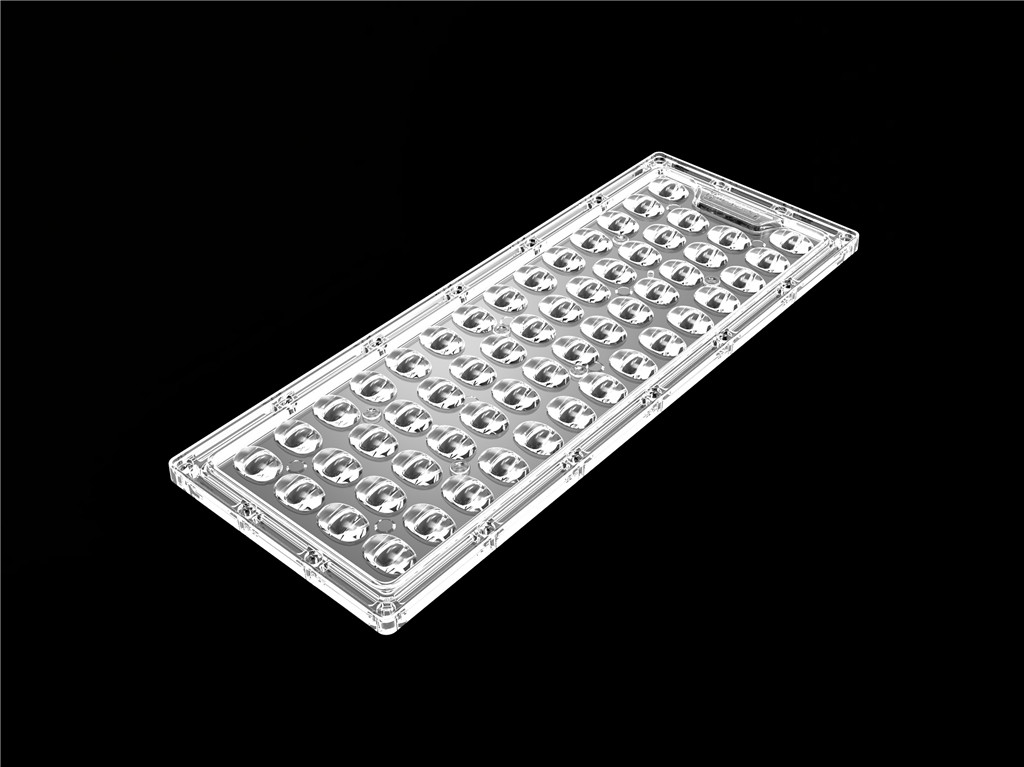

Lens PICTURE:

XH56TYPE3-320124JY-BAA Four 3030 Integrated 56 In 1 Street Lamp Lens TP3 0

IES:

XH56TYPE3-320124JY-BAA Four 3030 Integrated 56 In 1 Street Lamp Lens TP3 1

LED lens Drawing:

XH56TYPE3-320124JY-BAA Four 3030 Integrated 56 In 1 Street Lamp Lens TP3 2

Application:

XH56TYPE3-320124JY-BAA Four 3030 Integrated 56 In 1 Street Lamp Lens TP3 3
