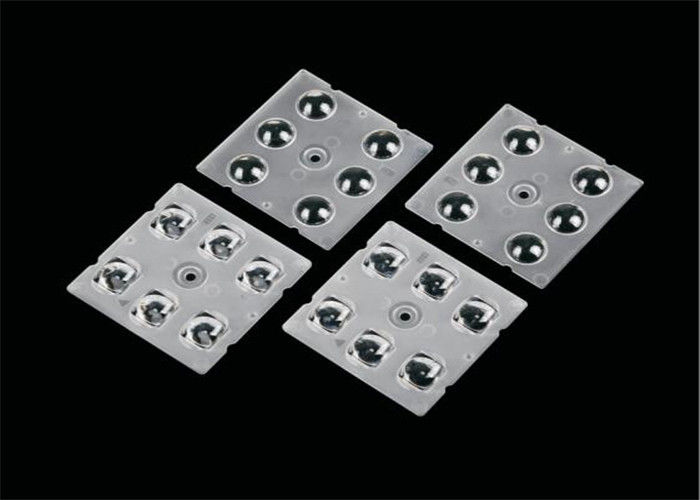

5050 SMD LED Lens 6 In 1 Easy Installation Transmittance 93% For Street Lighting

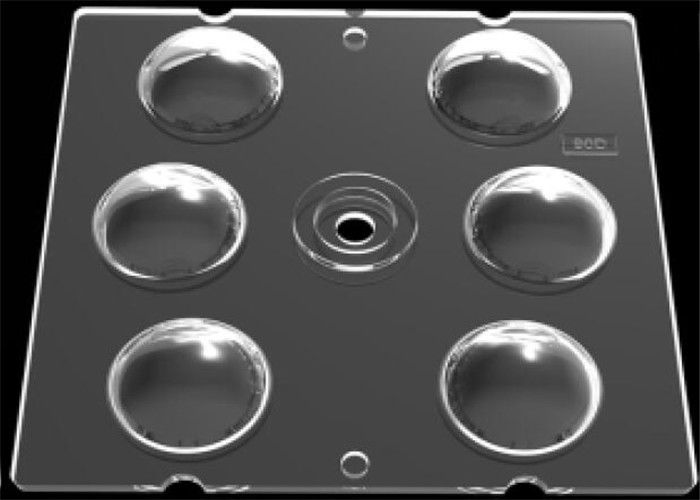

5050 SMD 6 in 1 Optical PMMA LED Lens For Street Lighting 90 Degree

OPTIC & HOLDER KITS:
LED optic and holder kits contain both the LED reflector/lens plus a holder. These are called lens assemblies or reflector kits.

• Lens holders provide a mechanical cut-off shield and can also be used to enhance performance.
• They are also much easier to install than a stand-alone lens.
• Alternatively these kits may include an LED holder which holds the LED in place.
• The lens/reflector then simply twists on top.

Number of LEDs per Len:

1. This refers to the number of LEDs that the lens is designed for.
2. They can be for single LEDs or arrays of LEDs. Multiple LED lenses are ideal for wide area lighting, for example street lighting. Lenses are often designed for use with specific LEDs.
3. Check the manufacturer data for compatible LED options.

Clear/Diffused:

Clear lenses provide a crisp-edged beam of light. A diffused lens has a softer edge.

Diffusion can also offer a more uniform light output when multiple LEDs are used.

LED lens Drawing:

IES:

PCB Dimension:
